Designer Series Range – DS19’6-1SL

The Designer Series range is created for travellers who want space, style and refined comfort without compromise for extended touring and long stays.

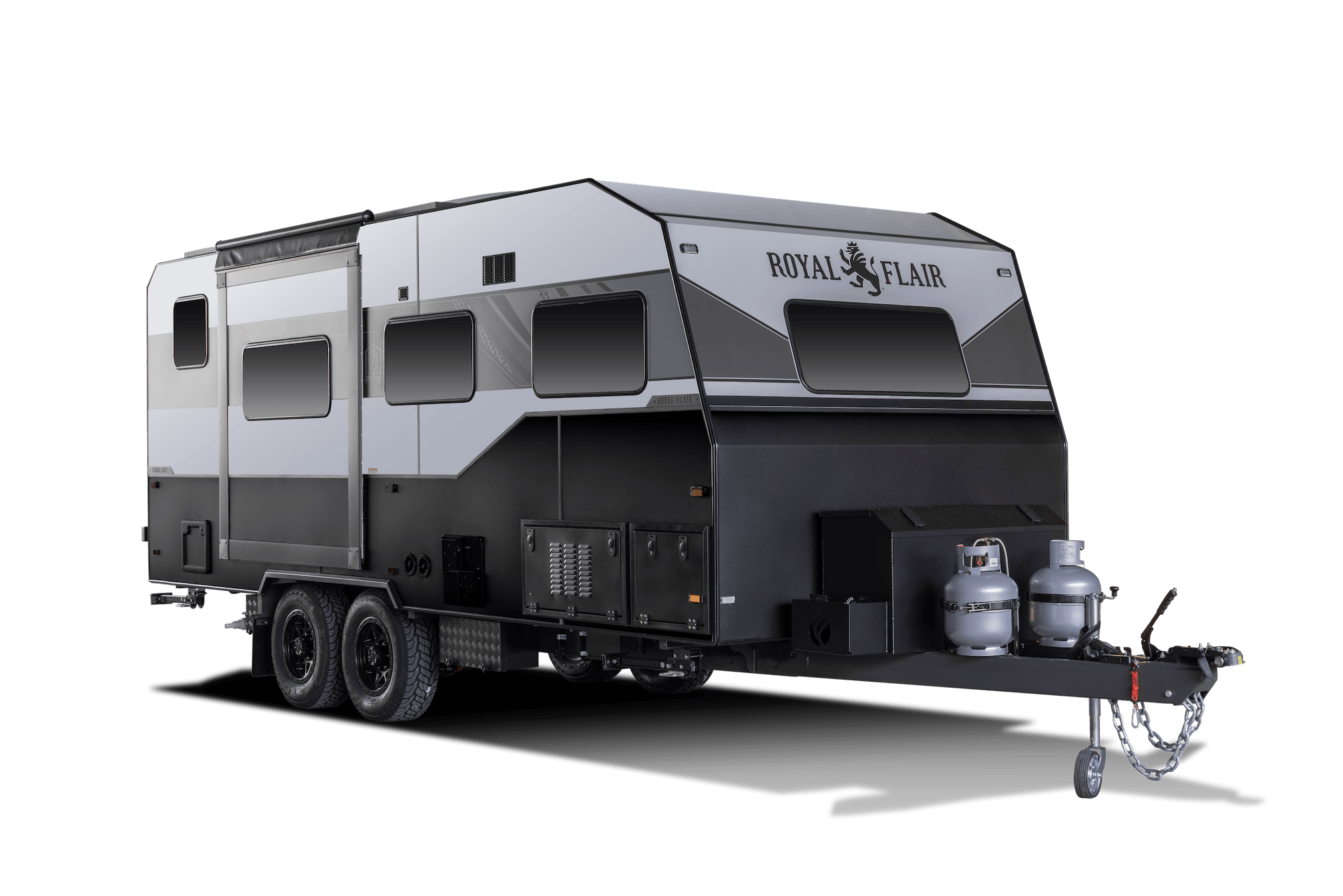

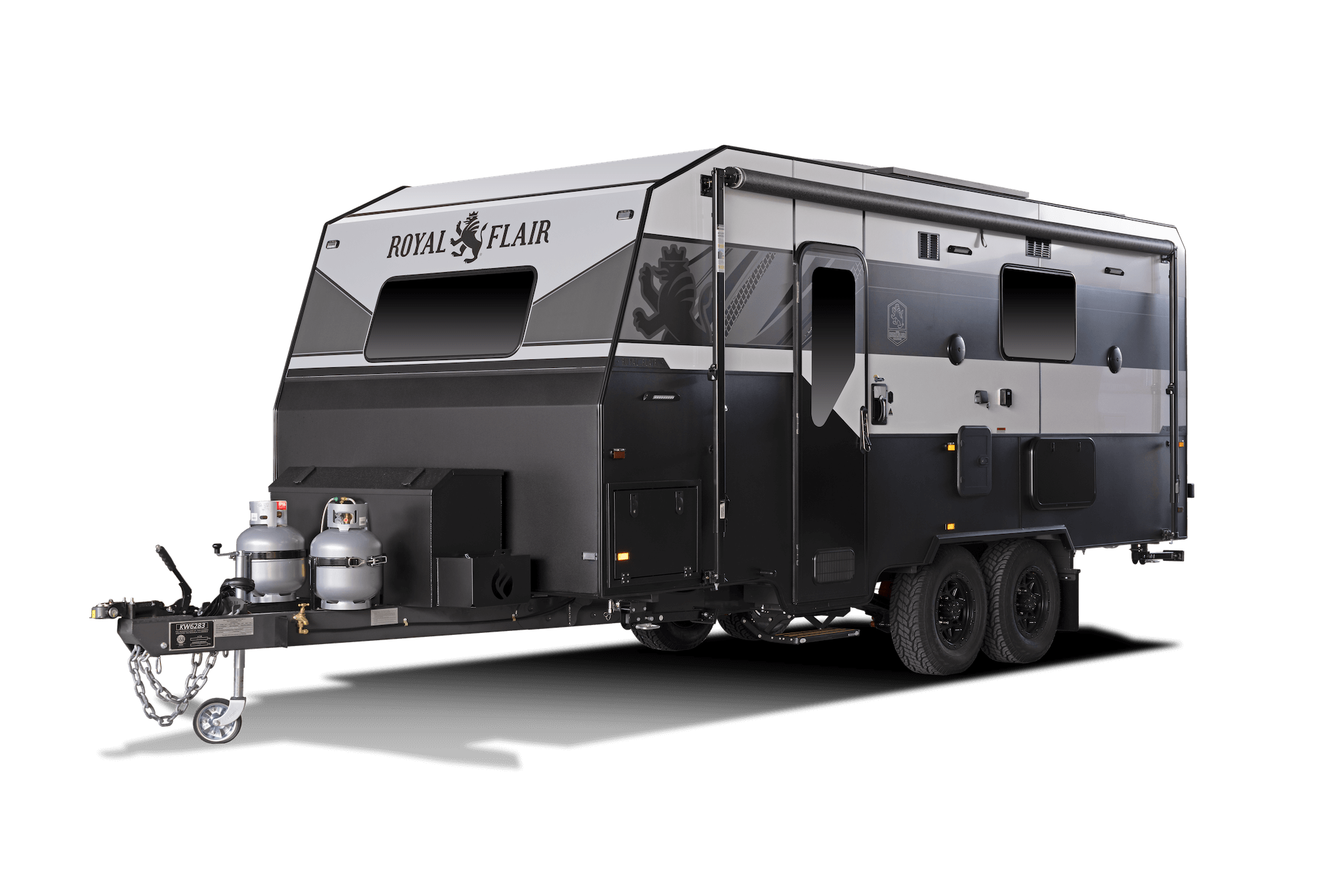

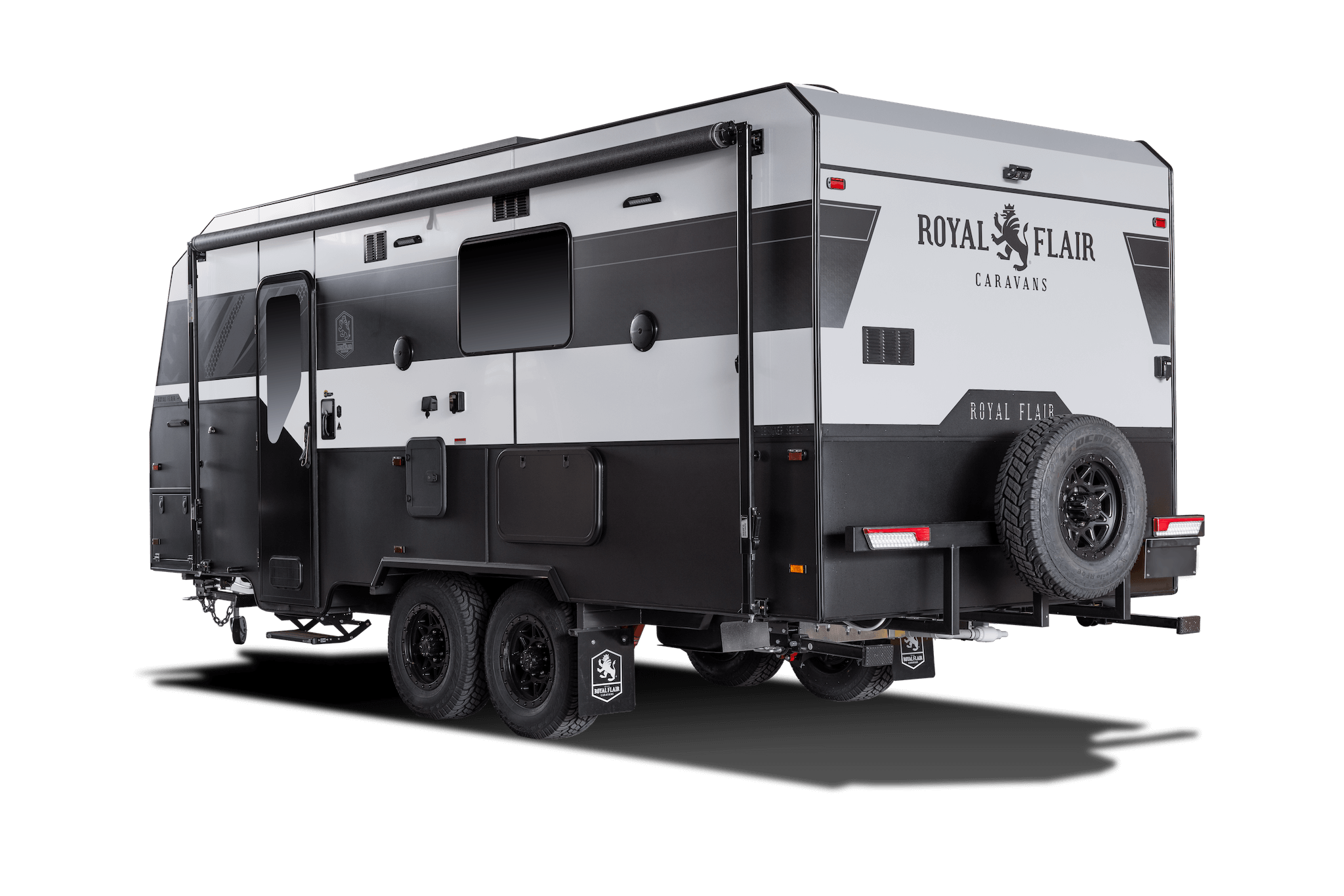

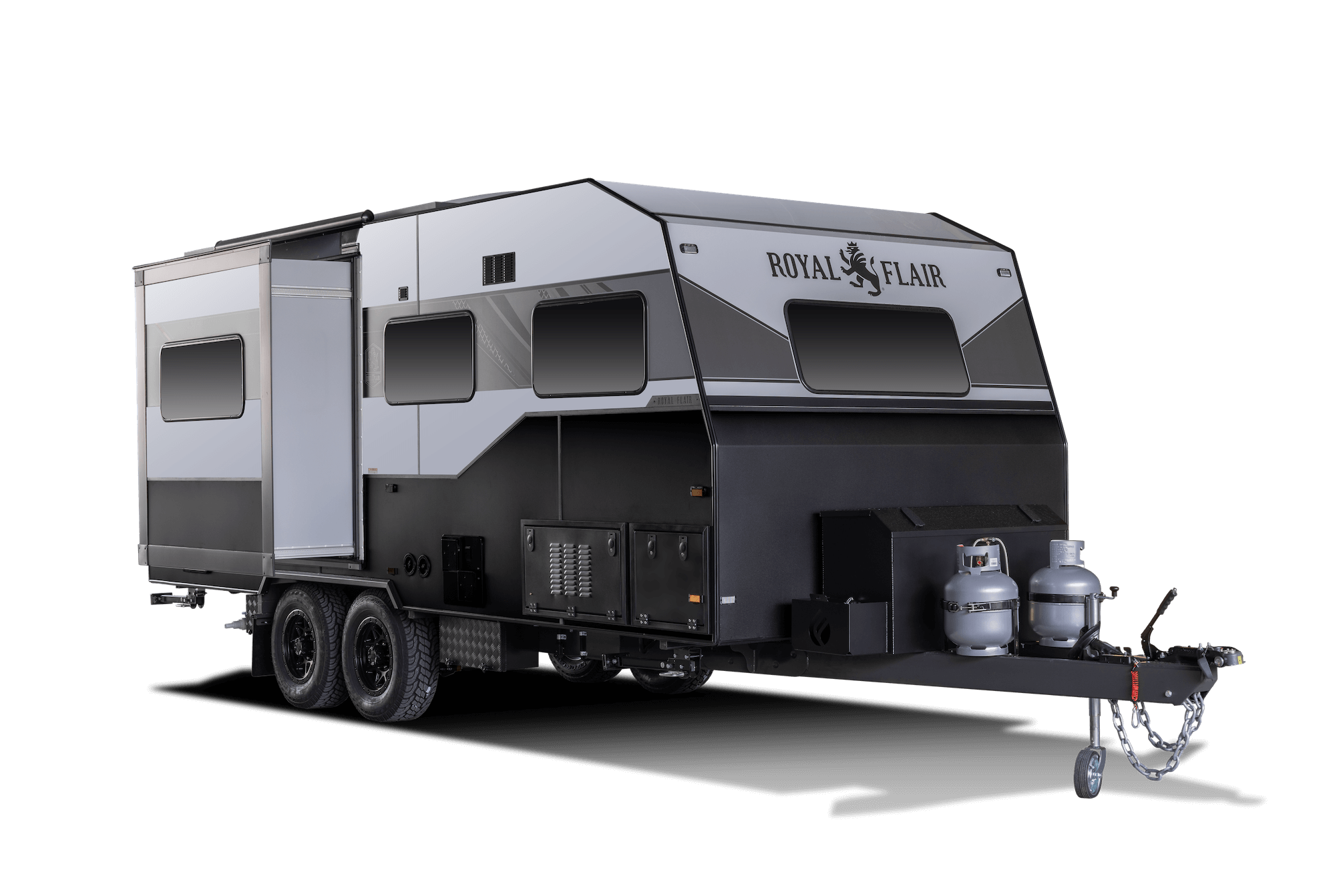

Loading exterior image...

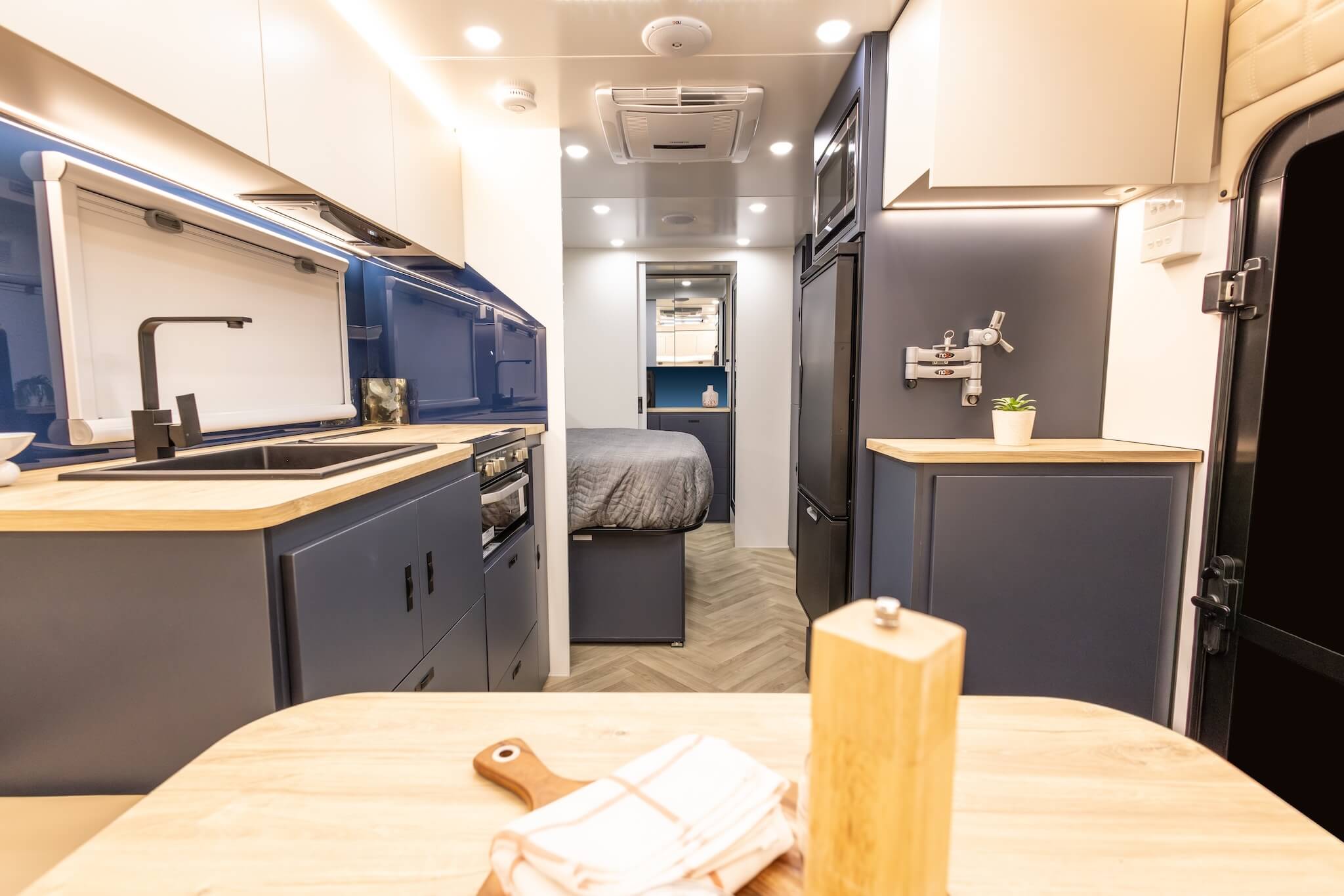

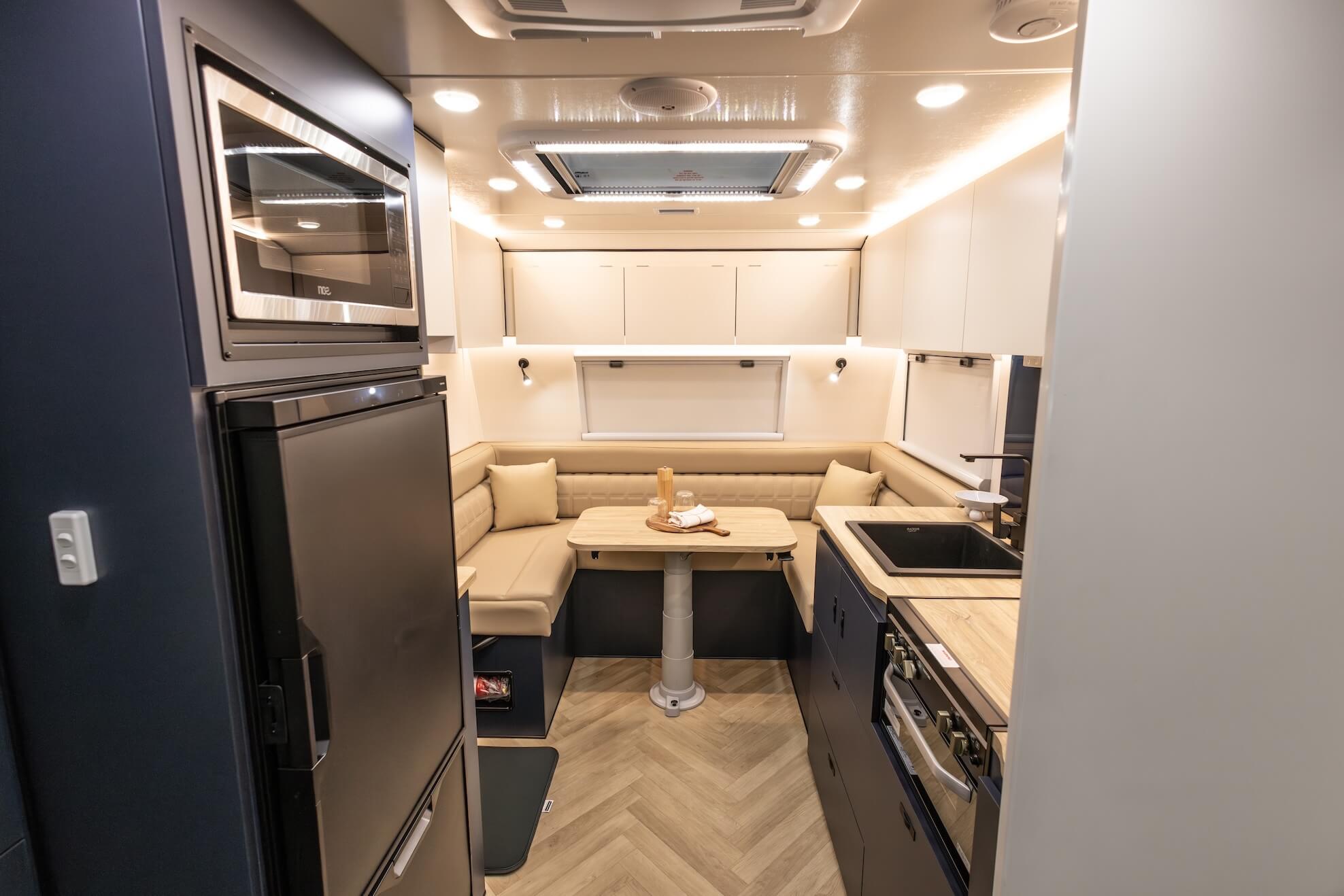

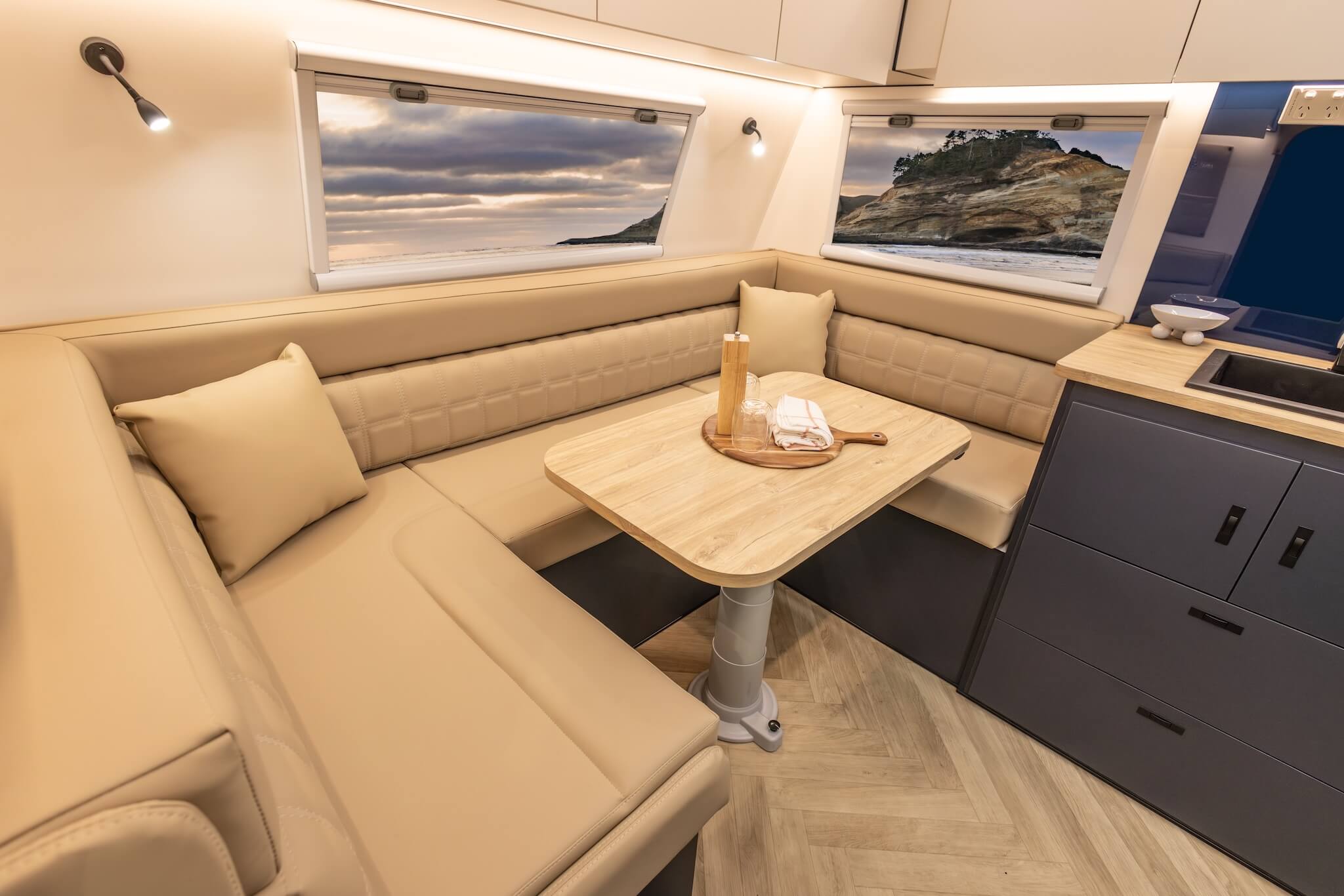

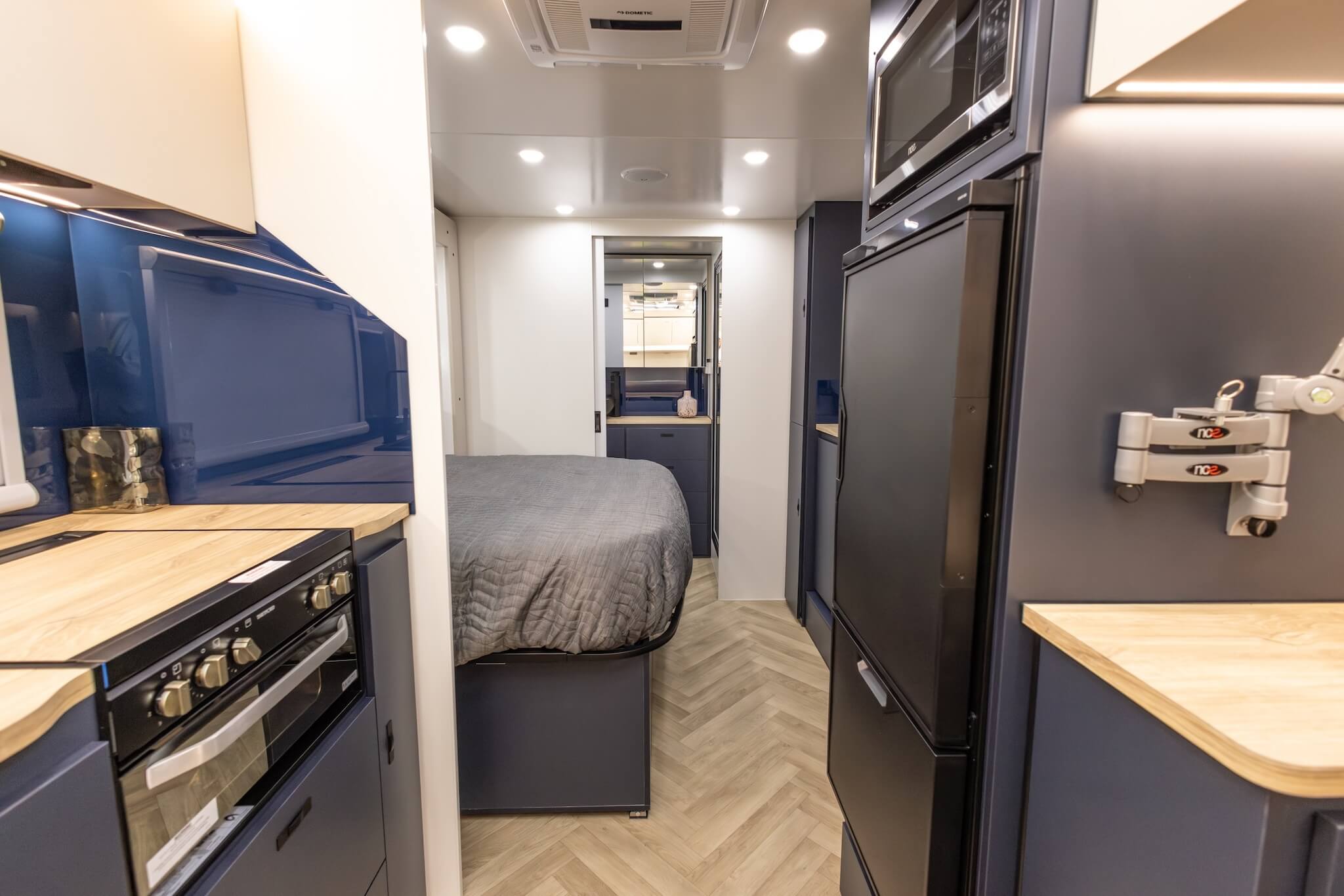

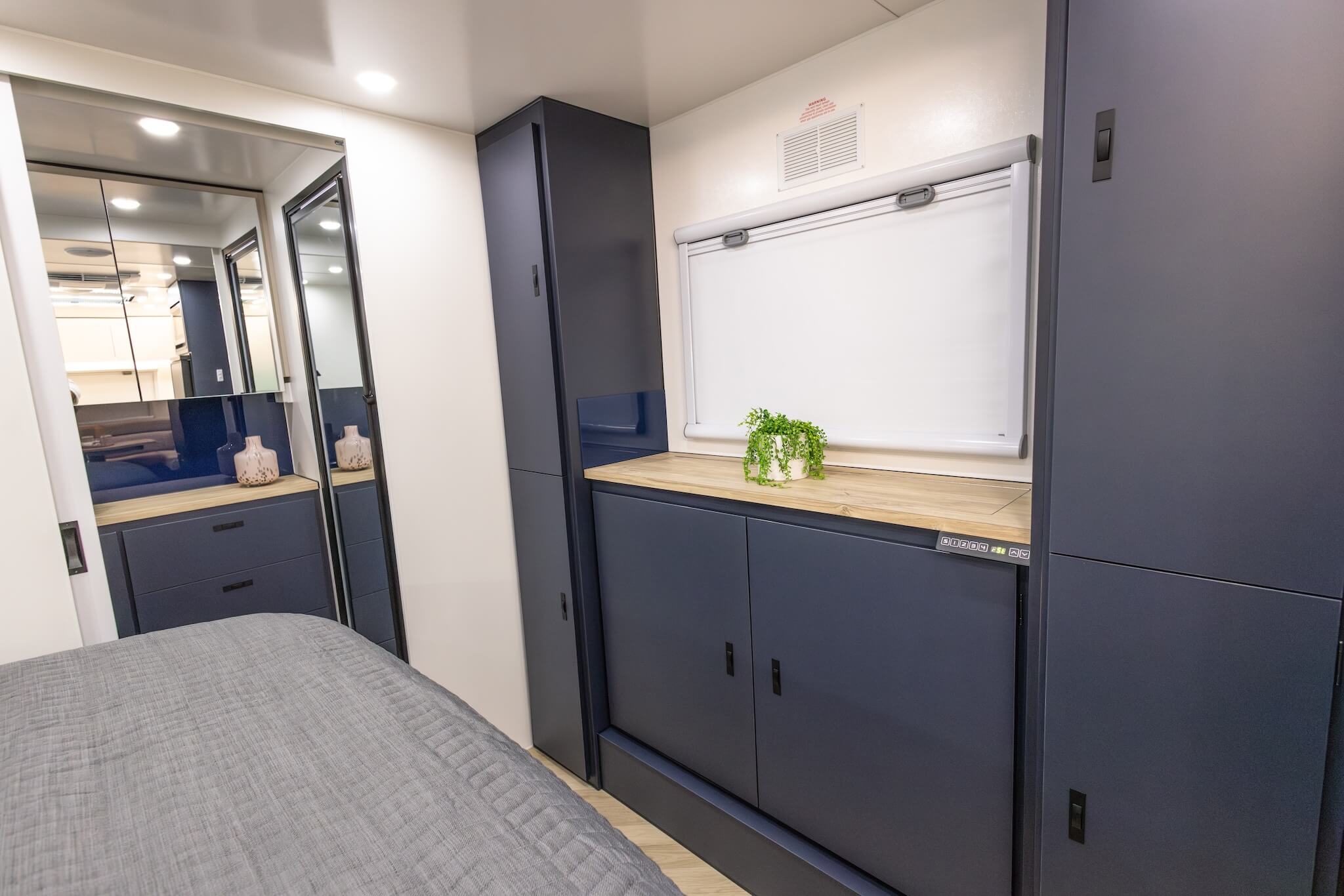

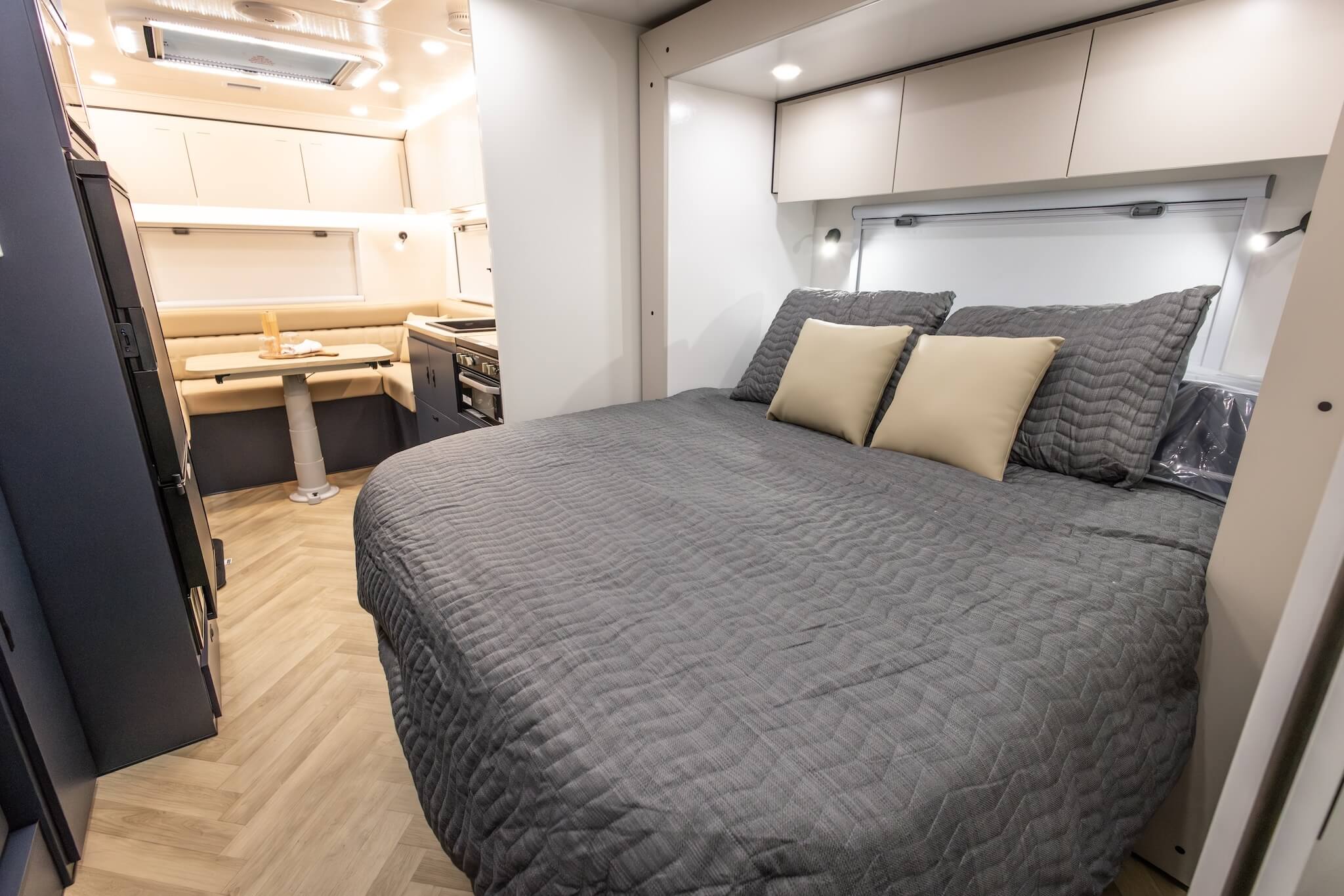

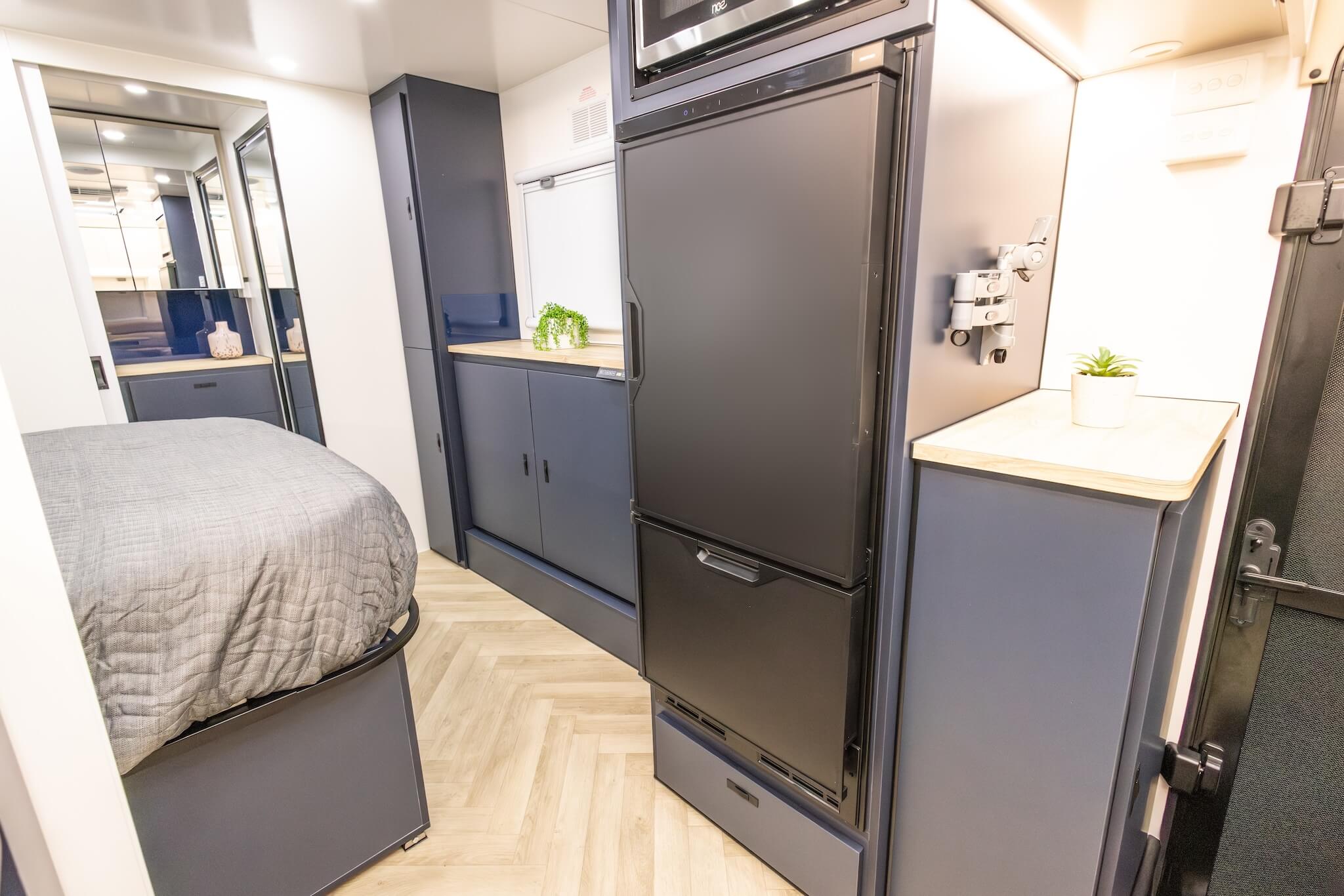

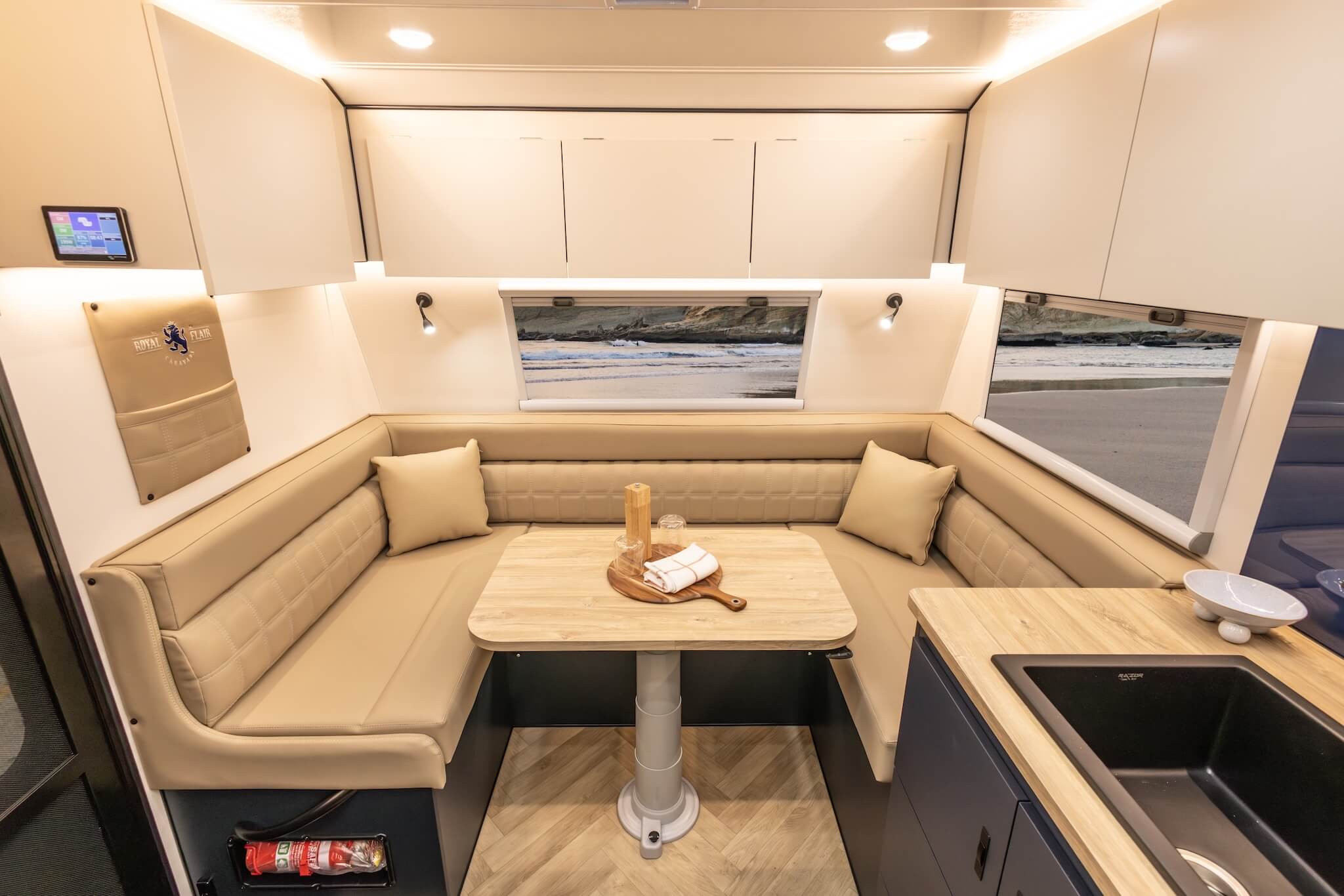

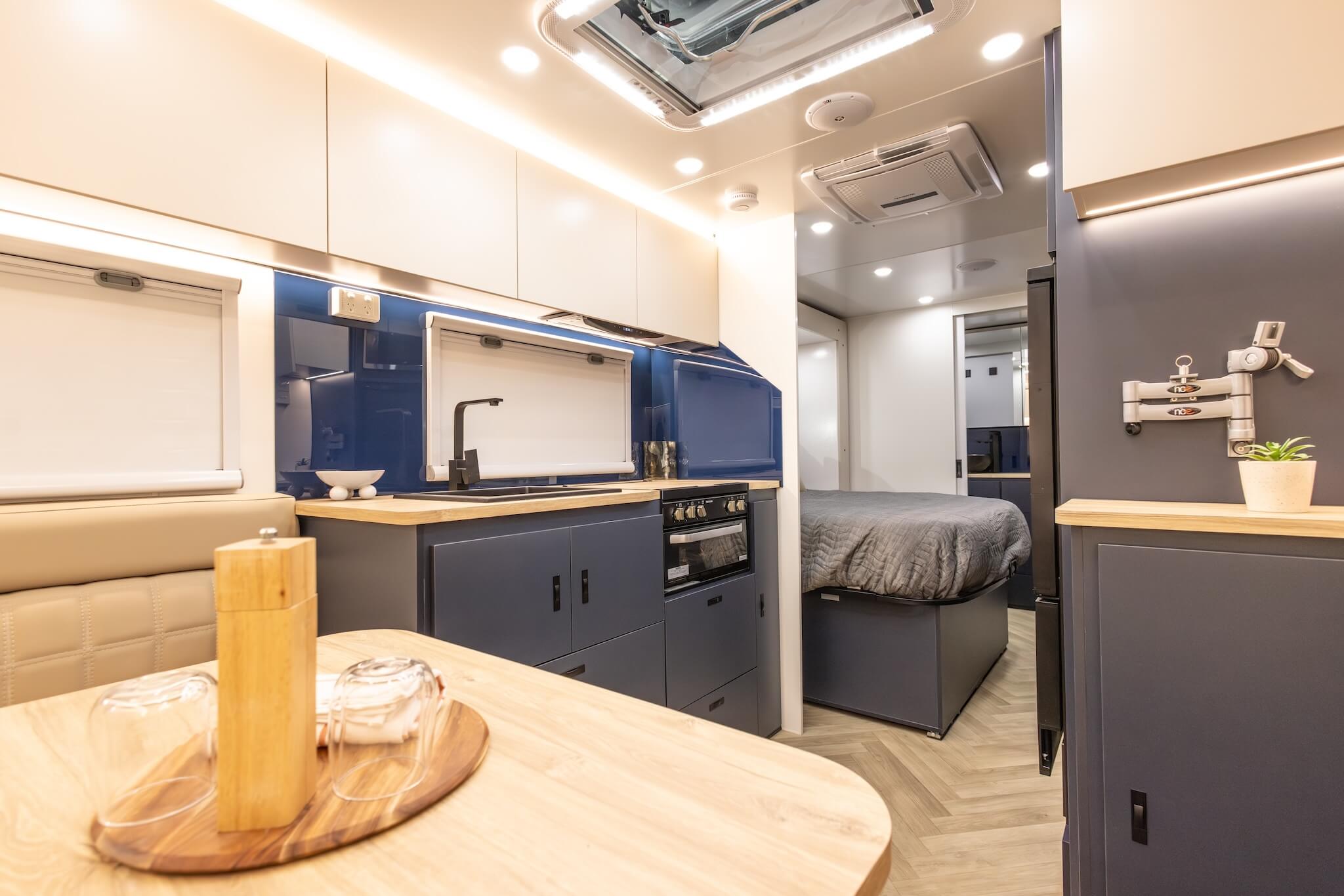

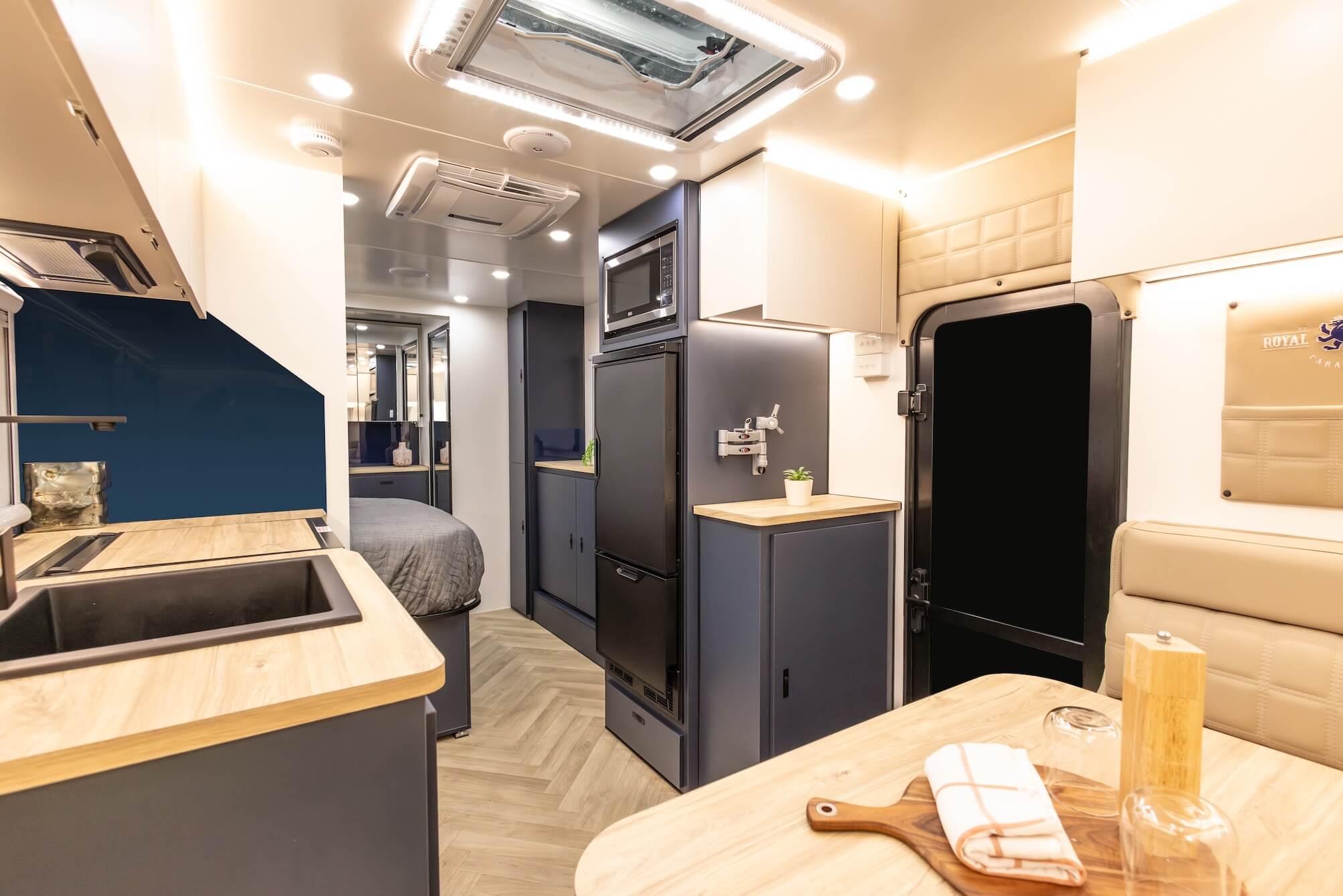

Where Style Meets Function

Premium interiors, smart layouts, and high-end finishes — built for the way Australians actually travel. Step inside and see for yourself.

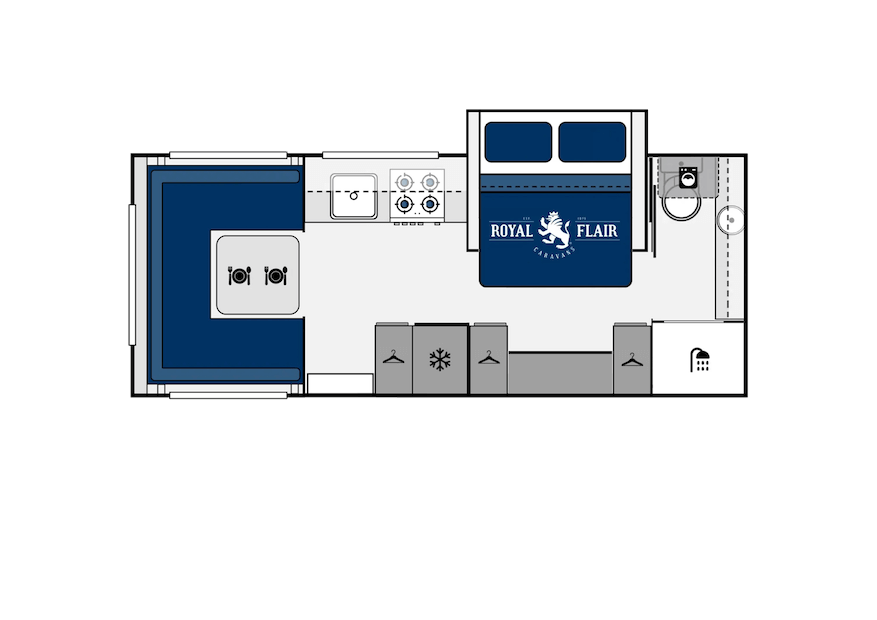

Floorplan

Every floorplan is designed to maximise space without compromising on comfort — giving you room to move, cook, sleep, and live on the road with ease.

Floorplan

Where Style Meets Function

Built to handle Australia's toughest conditions, every specification has been engineered for reliability, comfort, and long-term value. Review the full build sheet below.

  • ATM:
    Capped at 3.5 tonne with Maximum Payload
  • Pullout Step:
    Steel Single Manual
  • Chassis Height Adjustment:
    Raised 3"
  • Brakes:
    Electric Brakes 12"
  • Chassis Coating:
    Lightweight Supagal
  • Suspension:
    Tandem - EnduroX Lowline 3500kg GTM
  • A-Frame Construction:
    6" High
  • Coupling:
    DO35 with Safety Chains
  • Rims:
    16" Theory Matt Black with 6 Studs
  • Tyres:
    245/75R16 MPC
  • Bumper Bar:
    45° 3 Arms
  • Jockey Wheel:
    8"
  • Spare Wheel:
    Bolt-On
  • Floor:
    Honeycomb Composite Floor
  • A-Frame Extension:
    20"
  • Toolbox:
    ARV-DR07-B Black Flat Plate with 2 Side Jerrycan Holders & Top Lid
  • Main Bearers:
    4” High
  • Jacks:
    Drop-Down Jacks
  • Roadside Assistance:
    Premium for one year
  • Sway Control:
    BMPRO Sway Controller
  • External Speakers:
    Black x 2
  • Solar Panels:
    3 x 200 Watt with Regulator
  • Reverse Camera:
    Dual Black 120° / 45° AHD + 6" Monitor
  • TV 24"
    LED/DVD Combo
  • Fridge:
    Thetford T2175 174L Compressor Ventless
  • Microwave:
    23L Flatbed 900W NCE
  • Rangehood:
    12V
  • Smoke Detector:
  • LED Lights (Internal):
    Internal Downlights
  • Lithium Battery:
    Arizon 2 x 200Amp 12v LifePO4 (upgrade)
  • Air Conditioner:
    Roof Dometic FreshJet 7 Series Pro
  • Stereo System:
    CD/Radio/MP3 & Speakers x 2
  • 12 Pin Plug:
  • Breakaway:
  • Bed Lighting:
    Under Bed (W/A)
  • External TV Box Console:
  • LED Lights (Internal/External)
  • Awning Lights:
    Black x 3

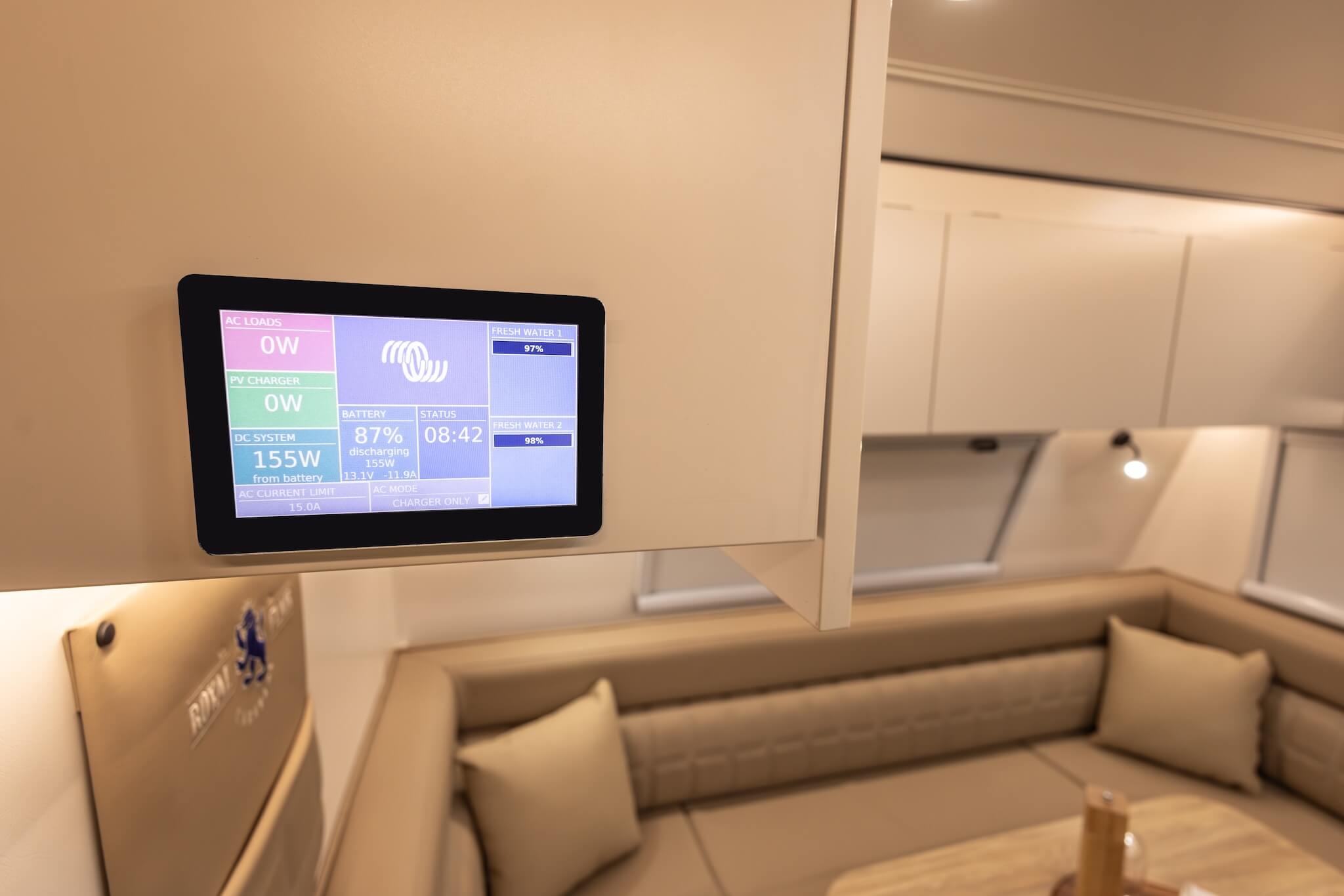

  • Inverter/Charger:
    Victron Multiplus 3000 Watt Inverter (upgrade)
  • Strip Light:
    Front and Under OHC
  • Antenna:
    Cowfish Vantenna for TV and Radio
  • Door Handle Light:
    External Black
  • External Power Points:
    Black
  • Anderson Plug:
  • Power Board:
    Includes Victron Multiplus 3000-watt Inverter, Arizon 2 x 200amp 12v LifePO4

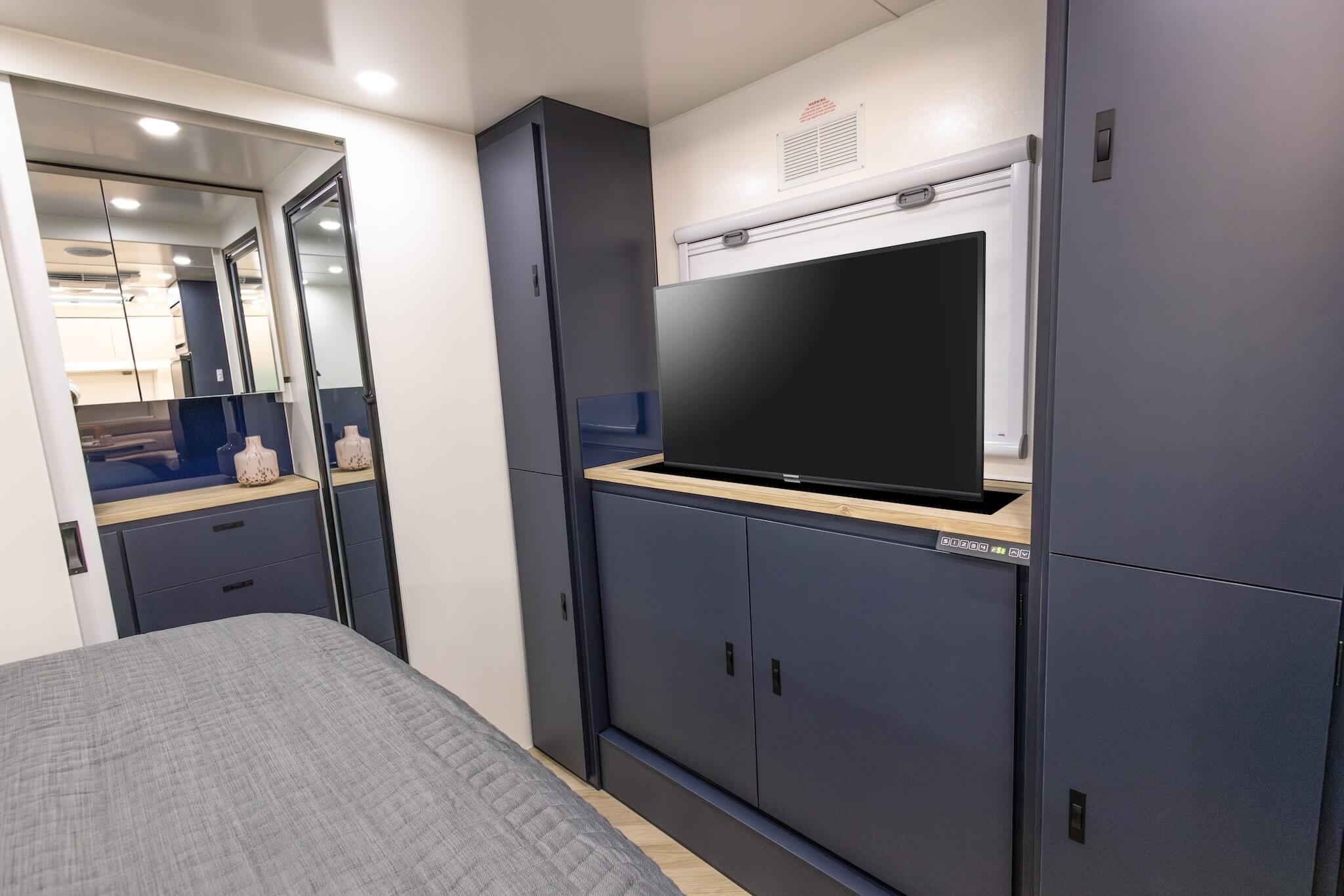

  • TV 40"
    LED/DVD Combo Lift Up
  • Pantry:
    Sliding Pantry
  • Fire Extinguisher:
    Recessed
  • Drawers:
    Metal Sided Soft Close
  • Safety Handrail:

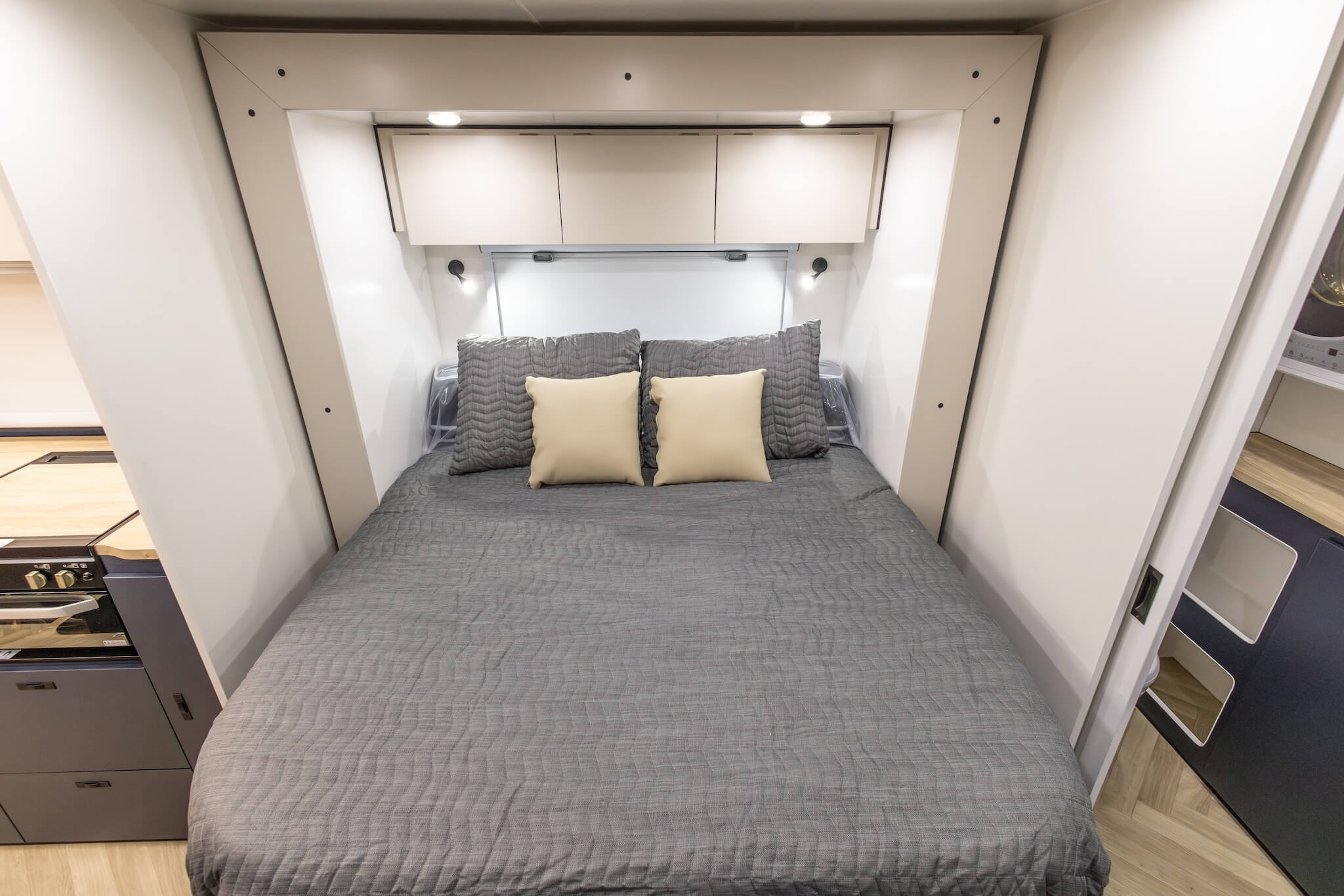

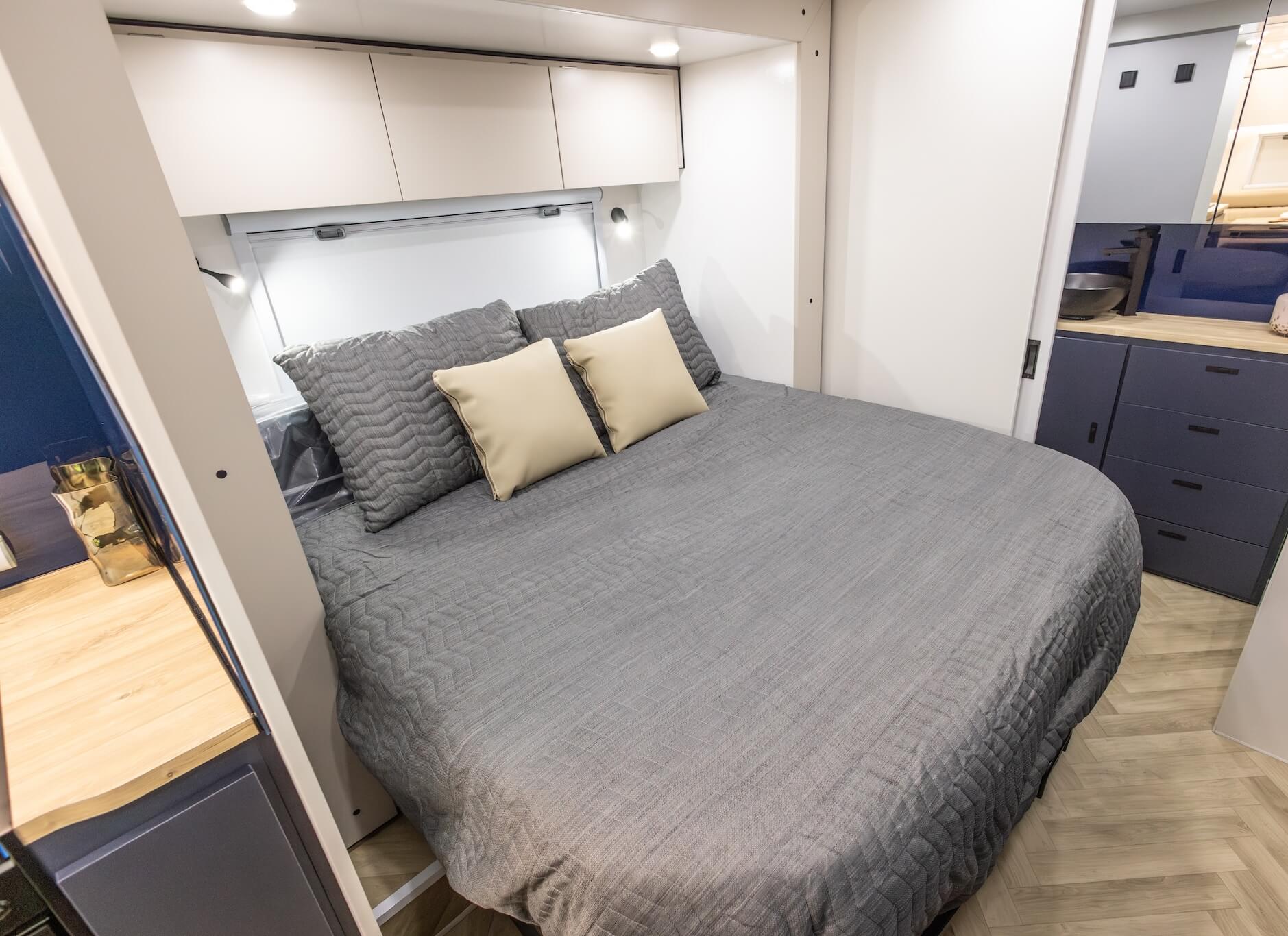

  • Mattress:
    Innerspring Queen Bi-Fold Pillow Top

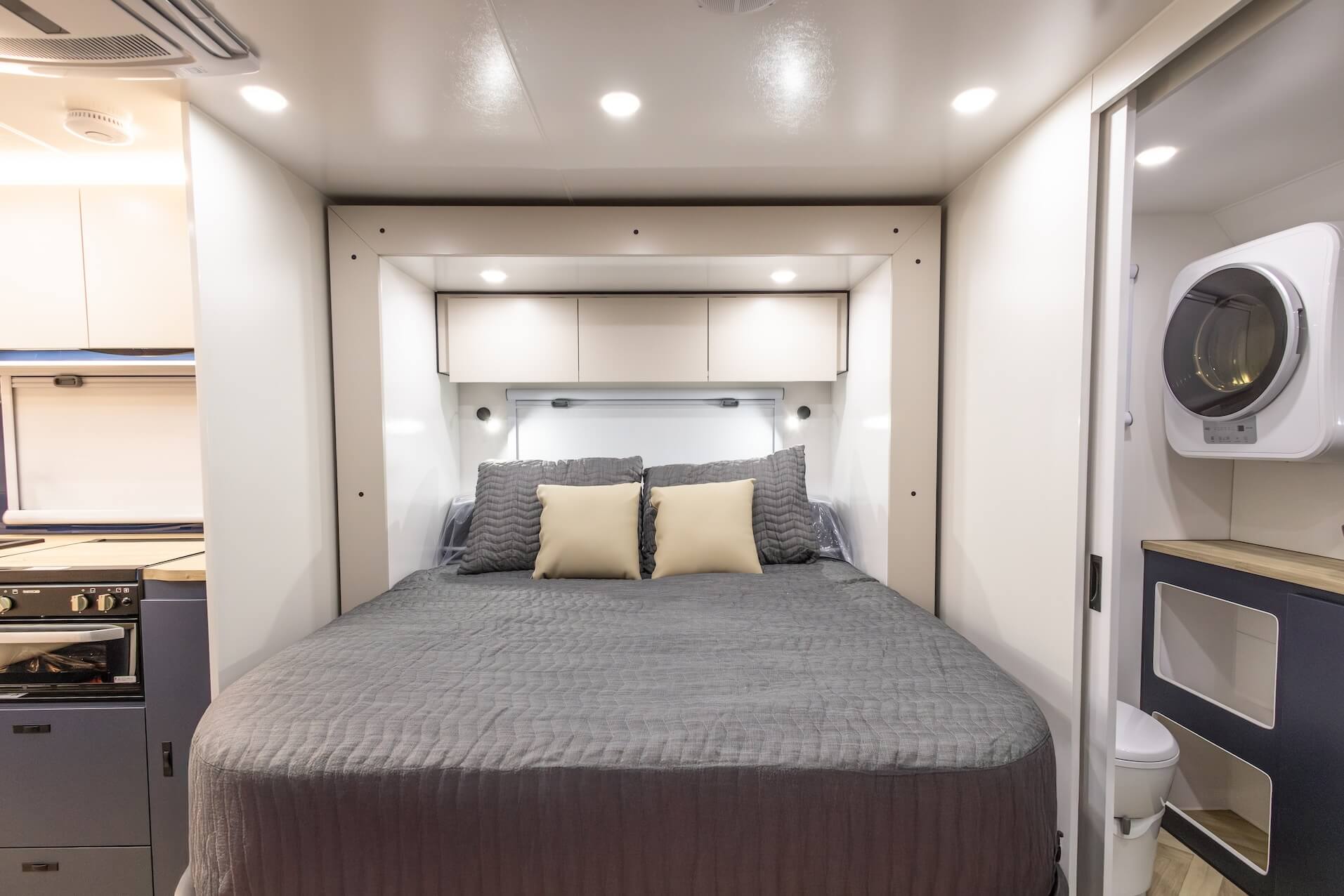

  • Bed:
    Slatted Frame on Gas Struts
  • Cutlery Tray:

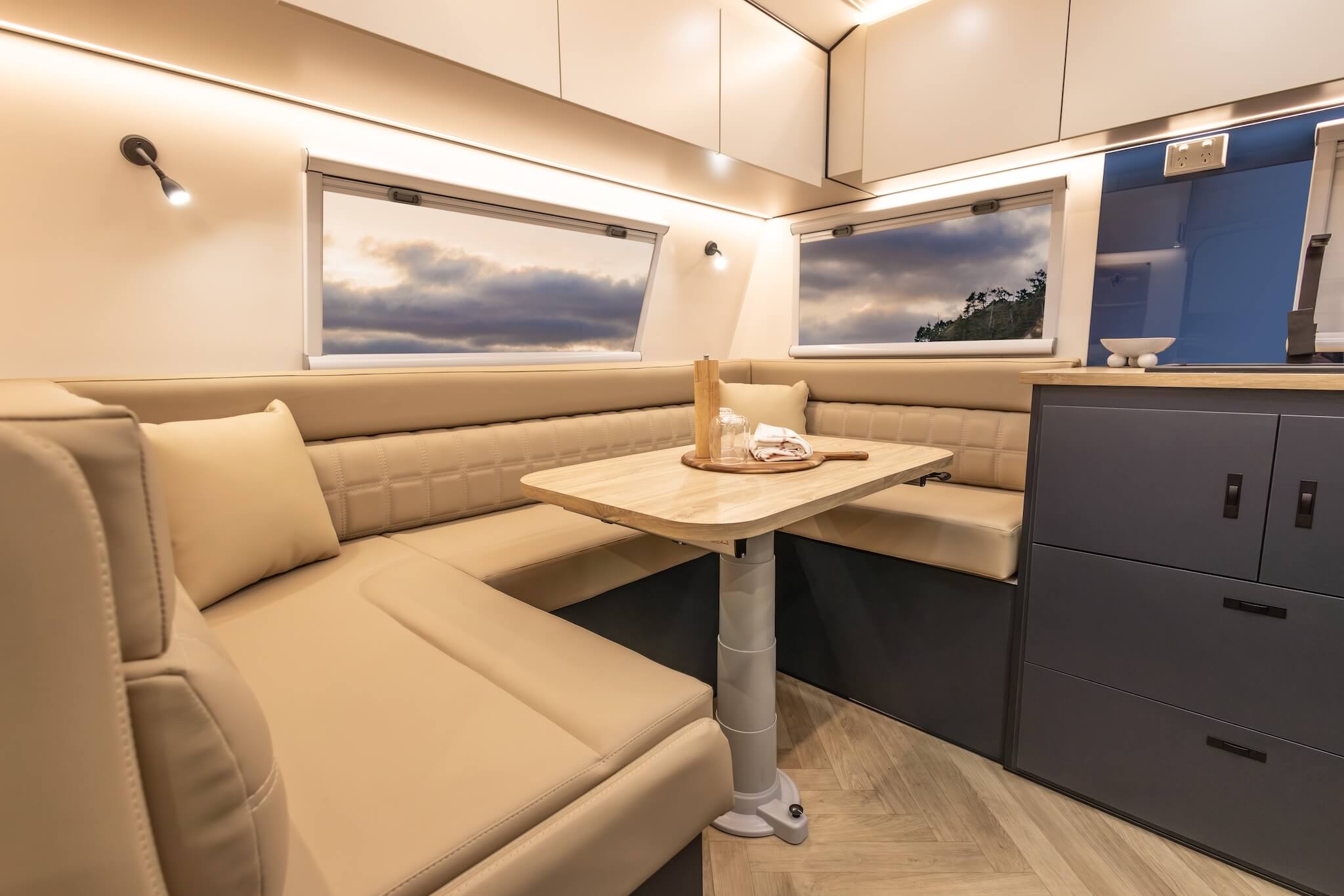

  • Table:
    Table with Adjustable Leg
  • Mats:
    Royal Flair Custom (RFC)
  • Coat Hooks:
    Razor Coat Hooks
  • Slide-Out Room Kit:
  • Quilt Cover Set:
  • Roof Hatch Bathroom:
    12V x 1
  • Tunnel Boots:
    Galvanised
  • External Table:
    Drop Down with Light
  • Roof Hatch:
    Finch Large with Light x 1
  • Vents External:
    Black
  • Flat Plate (Sides):
    Black 700mm – 1000mm
  • Flat Plate (Front):
    Black 1000mm
  • Wheel Spats:
    Flat Plate Black
  • Insulation:
    Full
  • Flat Access Doors:
    Black Frame / Infill
  • Roof:
    Aluminium Composite Panel White
  • Wheel Arches:
    Galvanised
  • J-Mould and Insert:
    Black
  • Reflectors:
  • Walls:
    Solid Wall Structure – Lightweight
  • Wheel Brace:
  • Door Stop:
  • Jacks:
    Hume Jack 2000 Kit
  • Exterior Panels (Front/Back/Sides):
    Aluminium Composite Panel – Colour
  • Flat Plate (Back):
    Black 700mm

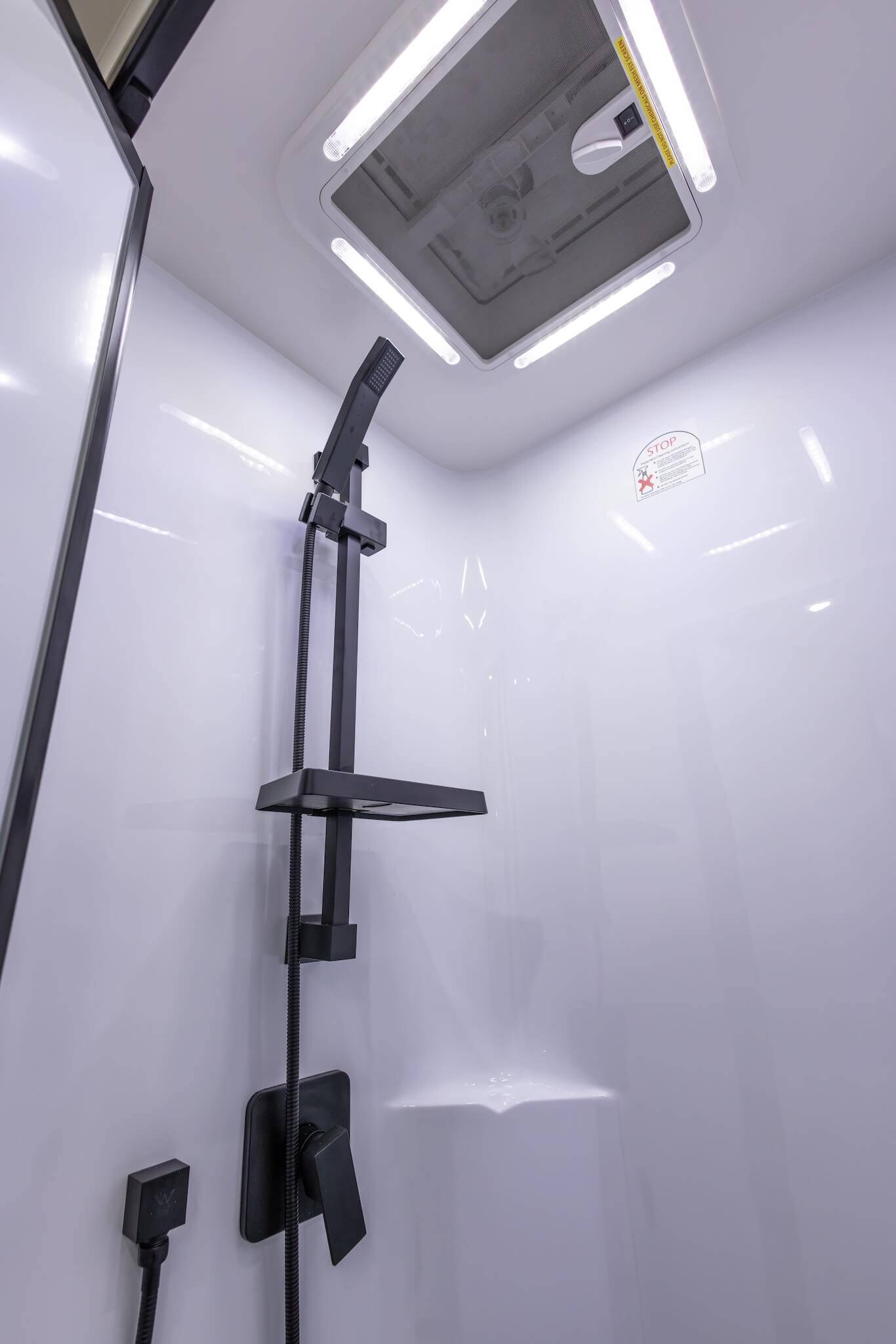

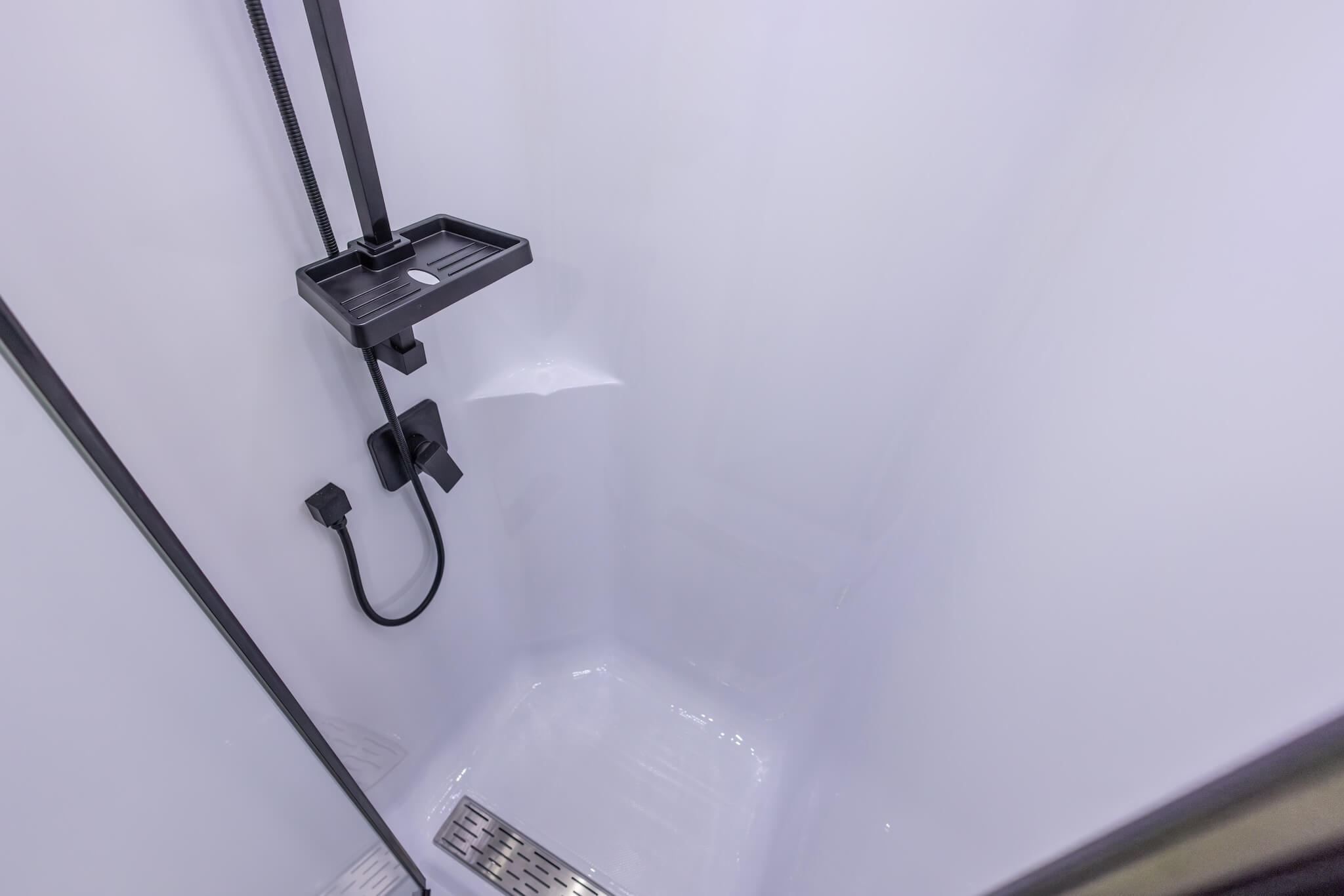

  • Shower Mould:
    ABS
  • Shower Door:
    Mirror with Black Frame

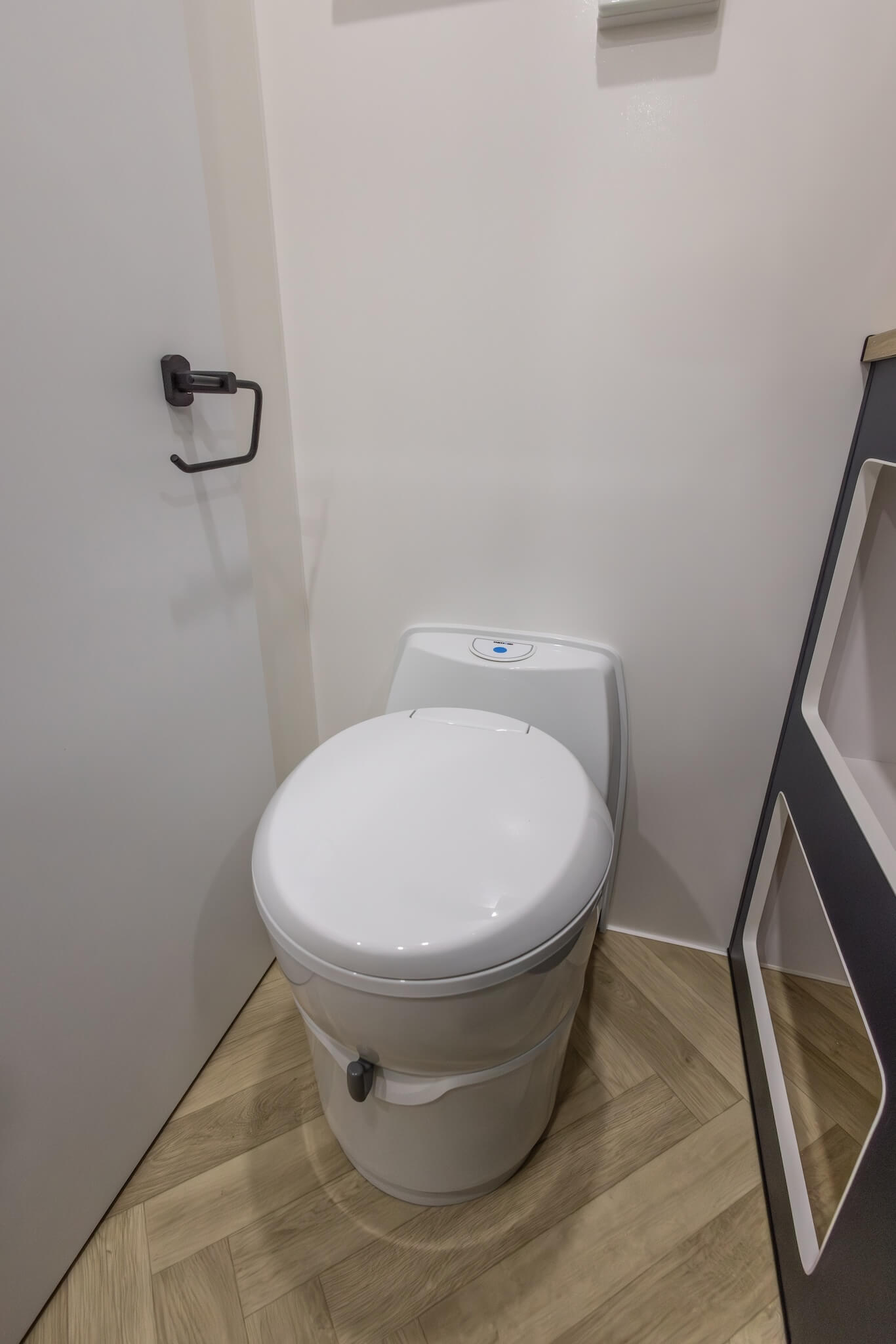

  • Toilet:
    Thetford Cassette Plastic Bowl C223CS
  • Sink:
    Ceramic Black

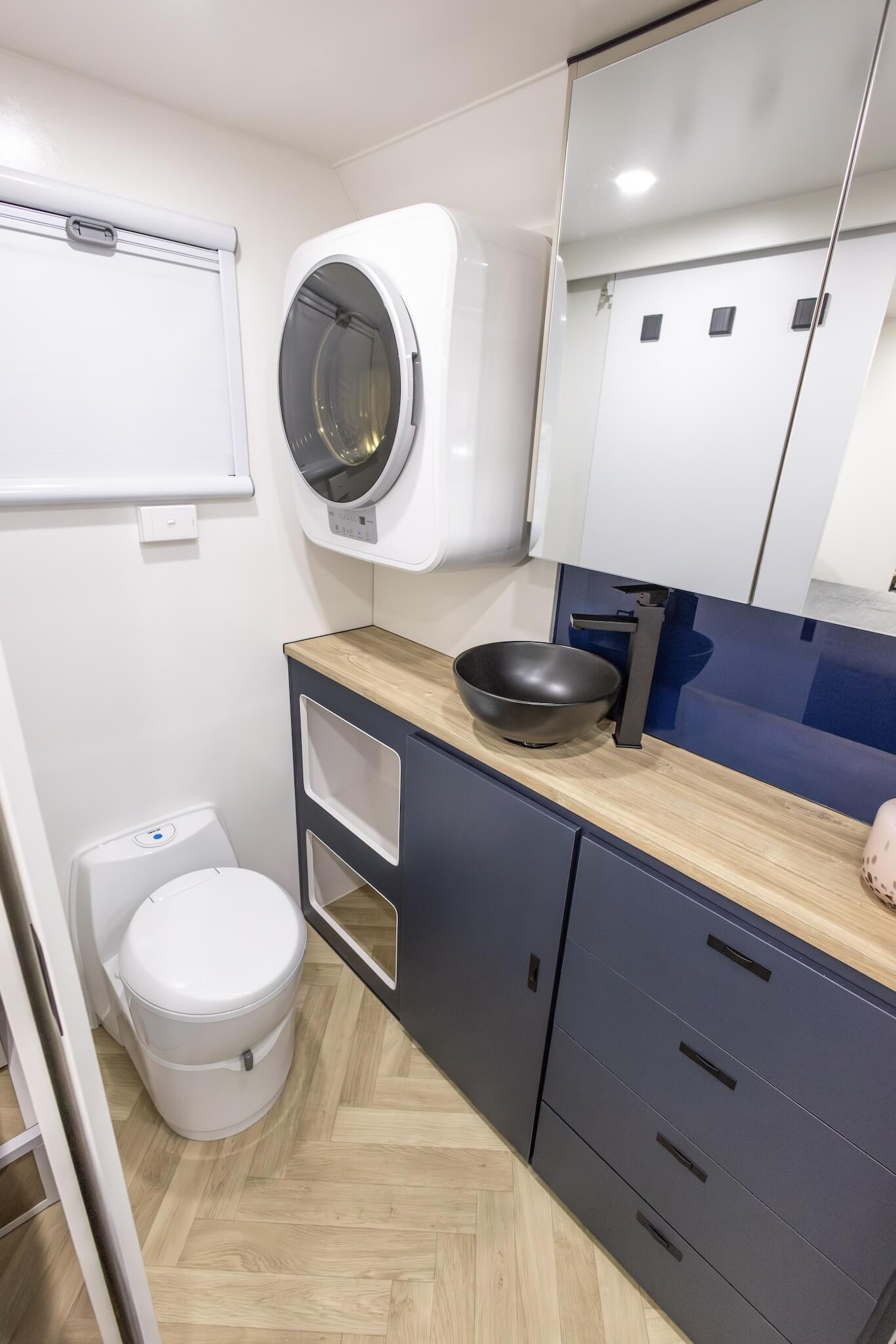

  • Washing Machine:
    NCE Wall Mounted 3kg
  • Water Tanks:
    x2 with Stone Guard (2 x 95L)
  • Gas Bottles:
    2 x 9kg on A-Frame

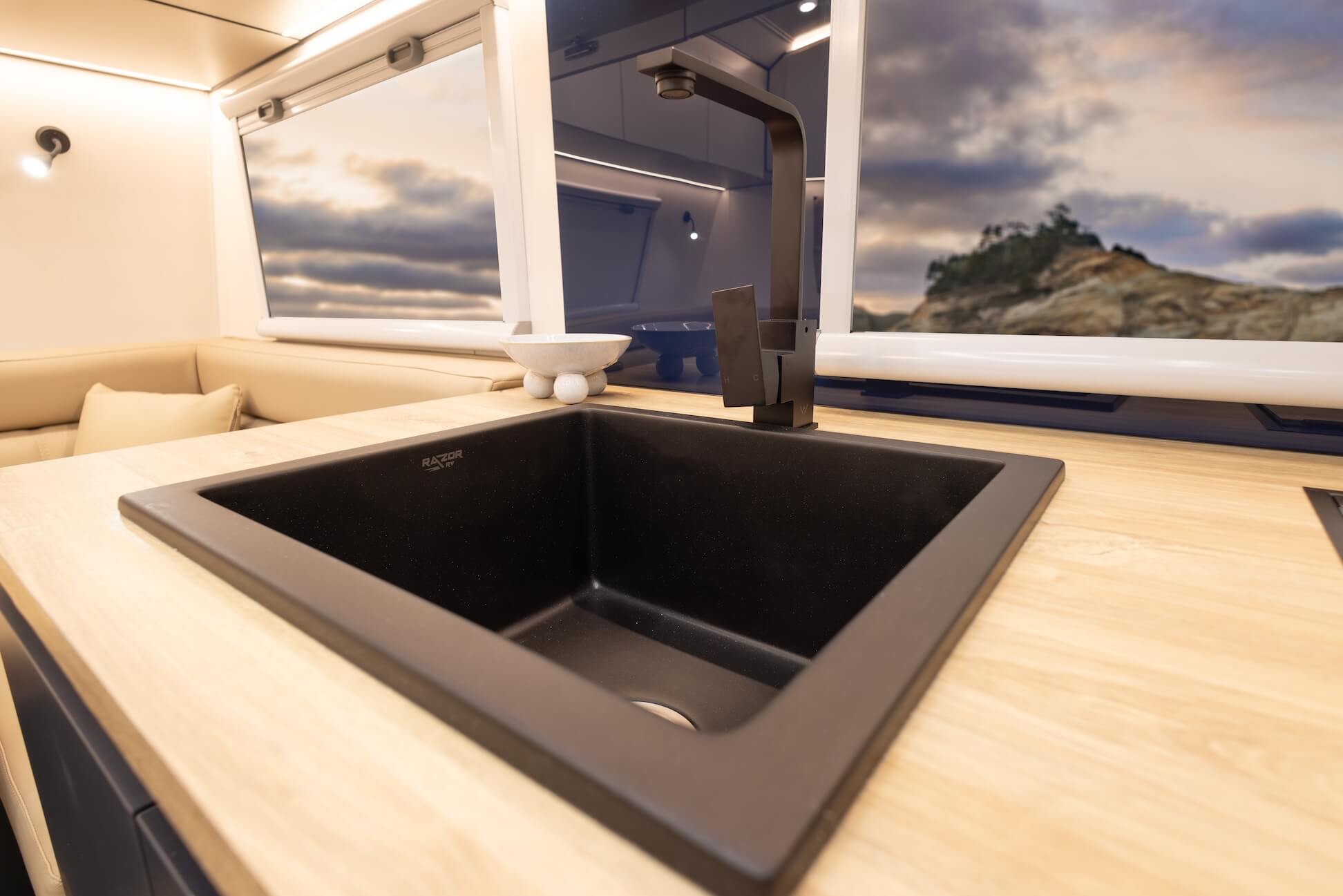

  • Sink:
    Black Granite Square (SINK4641B)
  • Taps:
    Black Fittings Throughout
  • Mains Pressure Tap:
    on A-Frame
  • BBQ Slideout:
    Swift with Gas Bayonet
  • Hot Water Service:
    Gas / Electric – Swift
  • Ensuite Door Mirror:
    (W/A)
  • Flick Mixer Tap:
  • Water Level Indicators:
  • Lockable Water Filler:
    Black
  • Main Pressure Water Filler:

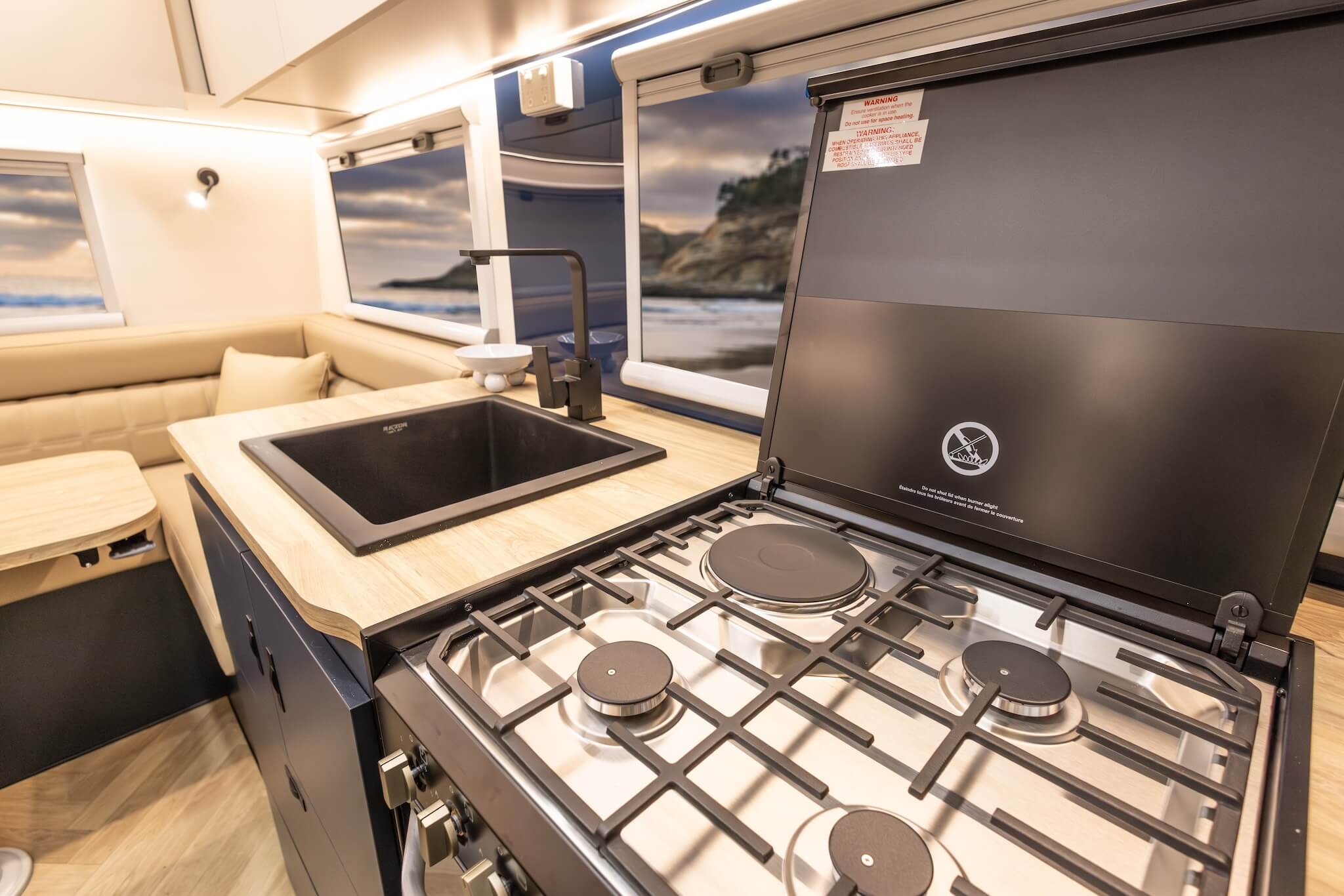

  • Cooktop:
    Thetford MiniGrill Gas / Electric
  • Water Pump:
    12V (Installed Externally in a Box Under Van)
  • Drain Tap:
    Fitted to Water Tank
  • Travel Length:
    Approx. 8.3m
  • Travel Width:
    Approx. 2.45m
  • Caravan Length:
    5945 mm
  • 2
