Built to handle Australia's toughest conditions, every specification has been engineered for reliability, comfort, and long-term value. Review the full build sheet below.
External Body Length 6105mm
External Length (End Coupling to Outer Spare Tyre) 8450mm
External Height (Ground to Top AC Unit) 3030mm
External Width includes all protruding fixtures 2500mm
Internal Length 5950mm
Internal Height 2010mm
Internal Width 2285mm
Alko Super Gal Painted Chassis Charcoal
Extended Aframe (steel 6" x 2") C450 1700mm
Main Rail 150mm x 50mm
Aluminium Wall Frame
Full Piece Composite Roof: 5 Colour Options
22mm XPS Moisture Resistant Insulation between Aluminium Wall Frames
Poly Honey Comb Light Weight Flooring
30mm One Piece XPS Insulated CNC Pre-Fabricated Roof
Aluminium Composite Panel: 5 Colour Options
Alko Independent Tandem Coil Spring Suspension 4.1T GTM
Alko 12" Electric Brakes
DO35 V2 Hitch Master Coupling
265/75 R16 Tyres on Silver/Black Rims Includes One Spare Wheel
Black Checker Plate, approx 600mm on sides
Printed Decals Choice of 5 colours
Picnic Table
External TV Box
External Awning with Mid roller support
Single Manual Entry Step with LED strip
Entry Door Grab Handle with Light
Two Arm Hot Dip Galvanized Bumper 45 Degree
Alko 8" Jockey Wheel
Full Width Tunnel Boot
Checker Plate Toolbox with Double Sliders
Projecta Intelli RV - PM435C with 7" Display Unit
Lithium Battery - 2 x 120AH IP67 Fitted Externally in Double Battery Box
Two x 200W Solar Panels
Anderson Plug
Dexter Anti Sway System (DSC)
King OmniPro Antenna
Starlink Ready: 12V Starlink Cosmo (for Starlink Gen 3)
Fusion Panel Stereo Mounted Interanlly and Externally
Dimmerable Downlights with soft LED strip light in Ensuite
Soft LED strip Lights at: Main Bed Side Tables, Under the Kitchen OHC and Ensuite Cabinetry
Multi Colour Annex Light - Door Side x3
Multi Colour Annex Light - Driver Side x1
External Power Point at Picnic Table
Reversing Camera
27" Smart TV
Tunnel Boot lighting at lockable doors, both sides

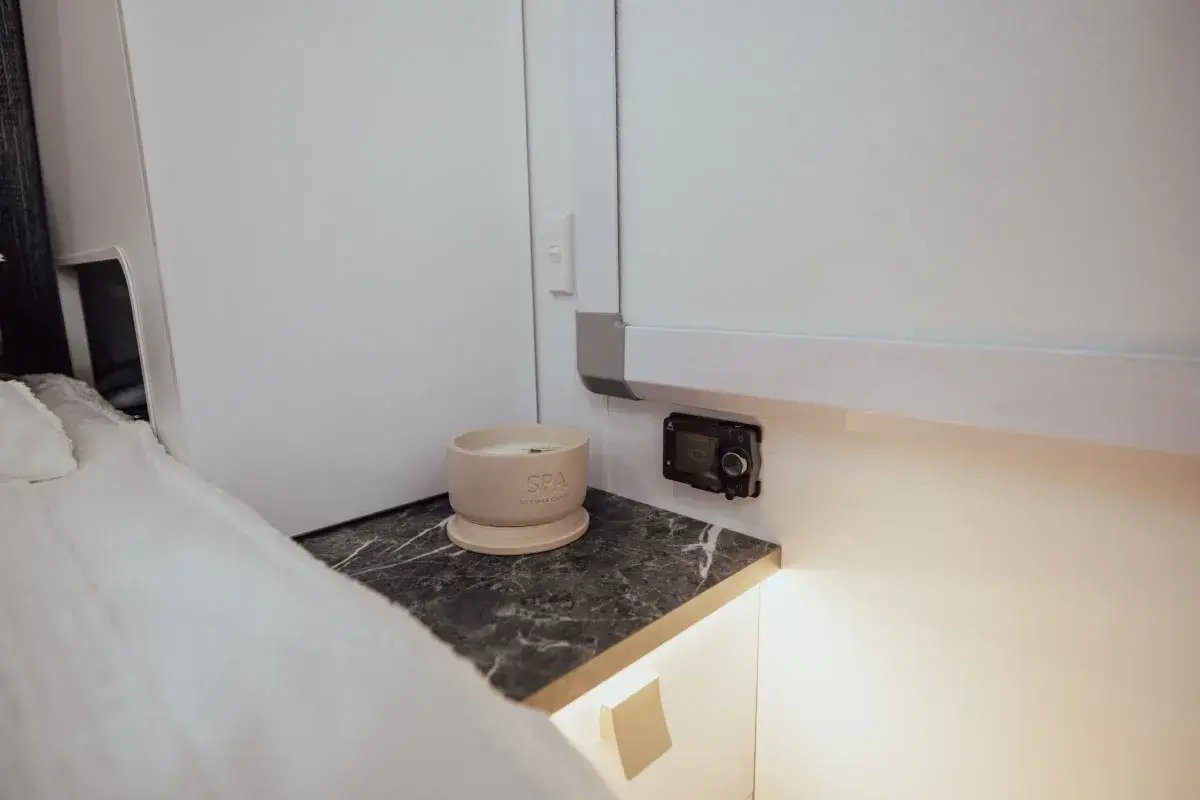

240V Single Power point, 12V Socket, USB port in Bedside Nook
Double Power Points: Living Seating Plus USB, Kitchen and Ensuite
Reading Lights: Bedroom x2, Living x2
External TV Box: 240V Single Power Point, CIG 12V / Antenna Point
Multi Lockable Water Filler Box with Fresh Water Tank Change Over Valve
Three Water Tank Sensors
External Mounted Water Pump Under chassis
Fresh Water Tanks: 2 x 95 Litres
Grey Water Tank: 1 x 110 Litres
External Shower
Mains Tap to A Frame & Mains Pressure
Two 9kg Gas Bottles Stored Inside Toolbox On Slider
External Gas Bayonet Fitting
Gas and Electric Hot Water System
Non Return Valve on the Shower, Vanity Bowl and Kitchen Sink

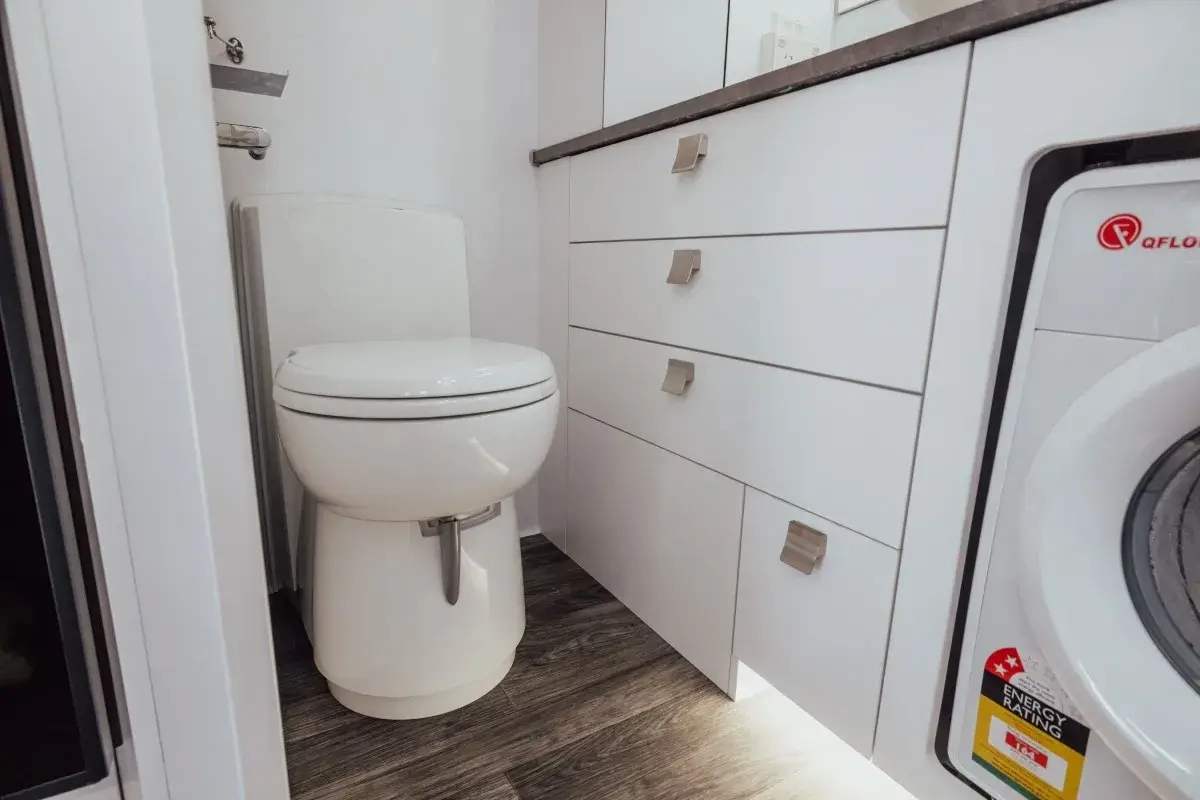

Thetford C402-C Left / Right Hand Toilet
Separate Shower & Toilet

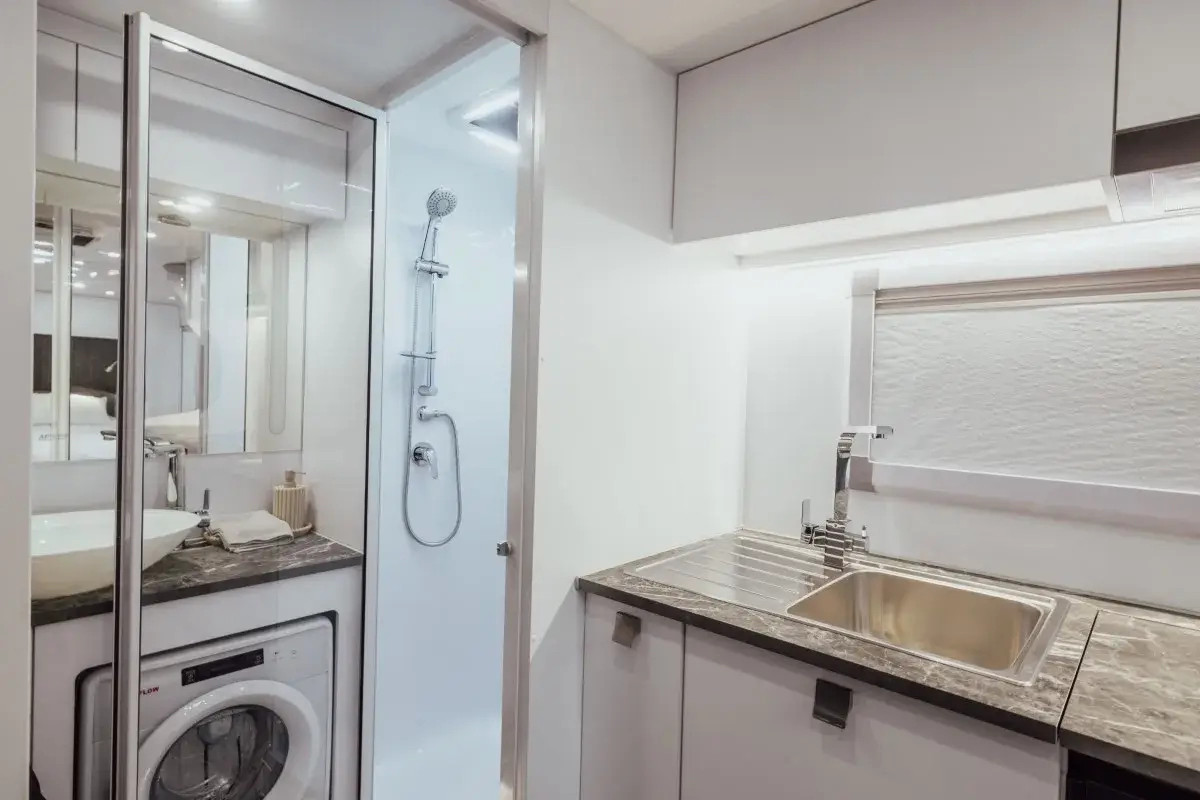

Fully Moulded One Piece Large Shower Cubicle
Sliding Door at Ensuite Entrance
Side Plastic Toilet or Ceramic Toilet
Mixer taps Basin, Shower
Single Internal Towel Rail
Exhaust Fan Hatch in Shower
Bathroom Window Above Toilet
Qflow Exclusive 2.5kg Front Loader Washing Machine
