Built to handle Australia's toughest conditions, every specification has been engineered for reliability, comfort, and long-term value. Review the full build sheet below.
External Body Length 6715mm
External Length (End Coupling to Outer Spare Tyre) 9625mm
External Height (Ground to Top of AC Unit) 3200mm
External Width includes all protruding fixtures 2500mm
Internal Length 6550mm
Internal Height 2010mm
Internal Width 2285mm
ATM 4500kgs
Extended Aframe (steel 6" x 2") C450 1800mm
Truss Main Bearers Top: 75x50 Grade C350
Truss Main Bearers Bottom: 50x50x3mm Grade C350
Aluminium Wall Frame
Full Piece Composite Roof: 5 Colour Options
22mm XPS Moisture Resistant Insulation between Aluminium Wall Frames
Poly Honey Comb Heavy Duty Flooring 38mm Plus Fibreglass skin
30mm One Piece XPS Insulated CNC Pre-Fabricated Roof
Aluminium Composite Panel: 5 Colour Options
Cruisemaster Tandem XT 4.1T ATM Coil Suspension with 12" Electric Brakes
DO45 V2 Hitch Master Coupling with Heavy Duty Chains
265/75 R17 All Terrain Tyres on Silver/Black Rims Includes One Spare Wheel
Black Checker Plate, approx 750mm on sides
Printed Decals Choice of 5 colours
Picnic Table
External TV Box
External Awning with Mid roller support
Double Manual Entry Step
Entry Door Grab Handle with Light
Galvanized Bumper Bar 3 ARM 45 DEG 46" STD
Spare Wheel (x1) and Holder at Rear on Bumper Bar
Alko 8" Jockey Wheel
Full Width Tunnel Boot
Checker Plate Toolbox with Double Sliders and Opening Top Lid
Milenco Dust Reduction Antenna
Jerry Cans x 2
400AH Projecta HD Lithium Battery Internal 500A Shunt (installed internally)
Number of Solar Panels - (200watts each/model dependant) X4
Anderson Plug - DC to DC Battery Charging
Additional Anderson Plug - Portable Solar Panel
Dexter Anti Sway System (DSC)
Milenco Dust Reduction Antenna
Starlink Ready: 12V Starlink Cosmo (for Starlink Gen 3)
Fusion Radio Apollo 770 Stereo System Plus Fusion Corner Speakers (2 Bedroom and 2 Seating Area)
Dimmerable Downlights with soft LED strip light in Ensuite
Soft LED strip Lights at: Main Bed Side Tables, Under the Kitchen OHC and Ensuite Cabinetry
Multi Colour Annex Light - Door Side x3
Multi Colour Annex Light - Driver Side x1
External Power Point at Picnic Table
Reversing Camera
27" Smart TV
Tunnel Boot lighting at lockable doors, both sides
240V Single Power point, 12V Socket, USB port in Bedside Nook
Double Power Points: Living Seating Plus USB, Kitchen and Ensuite
Reading Lights: Bedroom x2, Living x2
External TV Box: 240V Single Power Point, CIG 12V / Antenna Point Plus Fusion SRX400 Stereo and External Panel Speaker
Built in Phone Chargers
Multi Lockable Water Filler Box with Fresh Water Tank Change Over Valve
Three Water Tank Sensors
External Mounted Water Pump Under chassis
Fresh Water Tanks: 2 x 95 Litres
Grey Water Tank: 1 x 110 Litres
External Shower
Mains Tap to A Frame & Mains Pressure
Two 9kg Gas Bottles Stored Internally within the Toolbox
External Gas Bayonet Fitting
Gas and Electric Hot Water System
Global Eberspacher Diesel Heater (2.2KW)
Non Return Valve on the Shower, Vanity Bowl and Kitchen Sink
Protection over PVC Drainage Piped
Thetford C263CS Ceramic Toilet
Separate Shower & Toilet

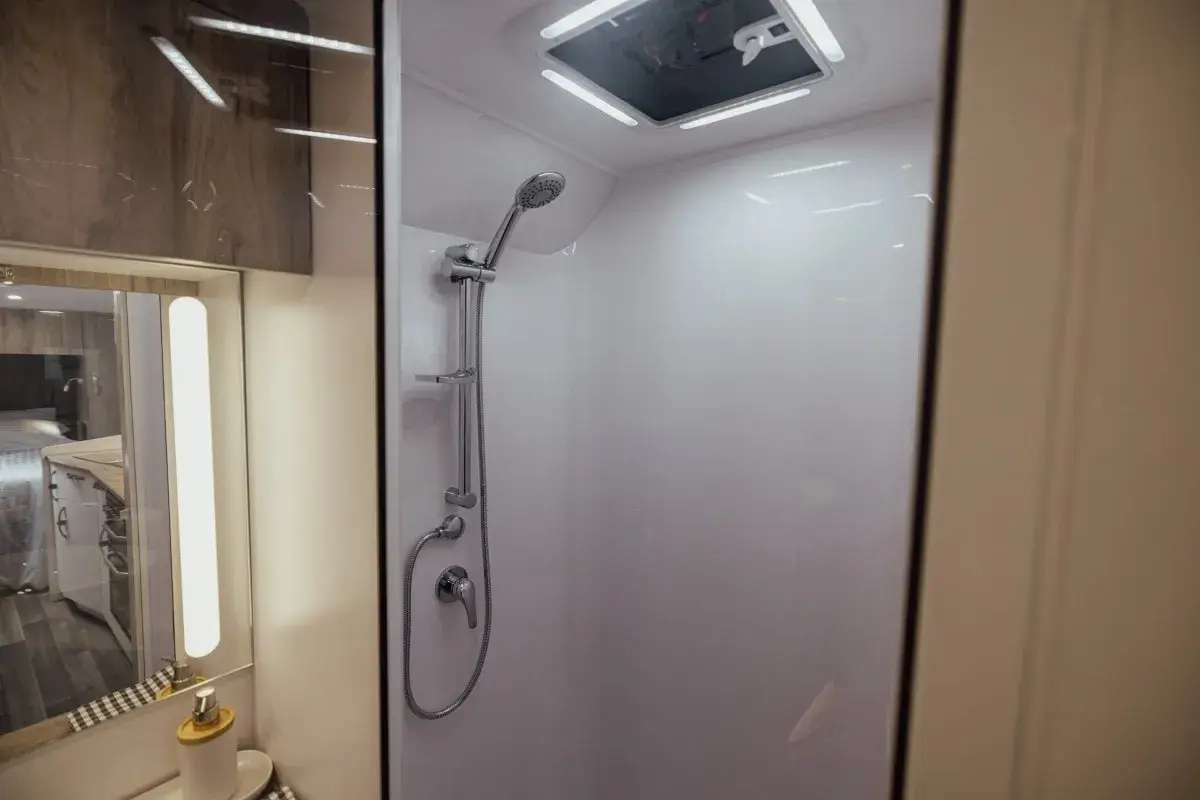

Fully Moulded One Piece Large Shower Cubicle
Sliding or Hinged Door at Ensuite Entrance (Model Dependent)
Ceramic Swivel Toilet or C402 Toilet (Model dependent)
Mixer taps Basin, Shower
Exhaust Fan Hatch in Shower
Bathroom Window Above Toilet

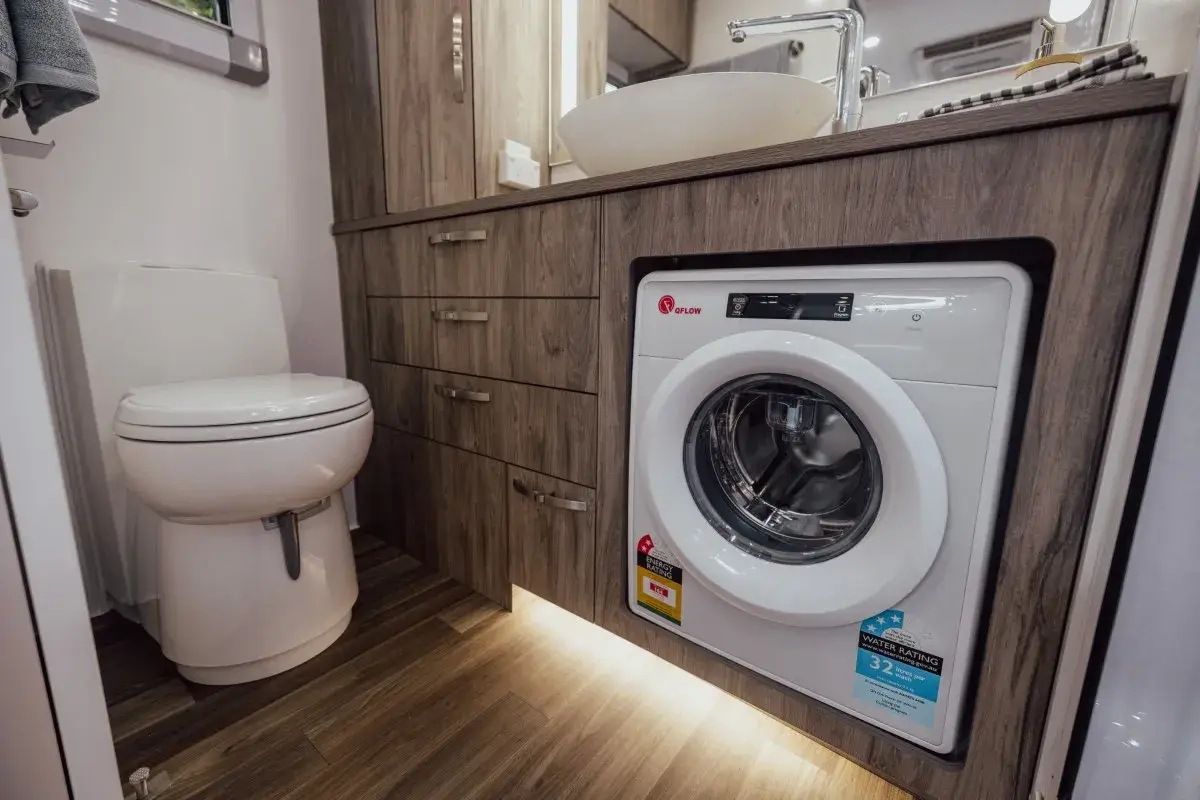

Qflow Exclusive 2.5kg Front Loader Washing Machine
